01 — Product

Product Overview

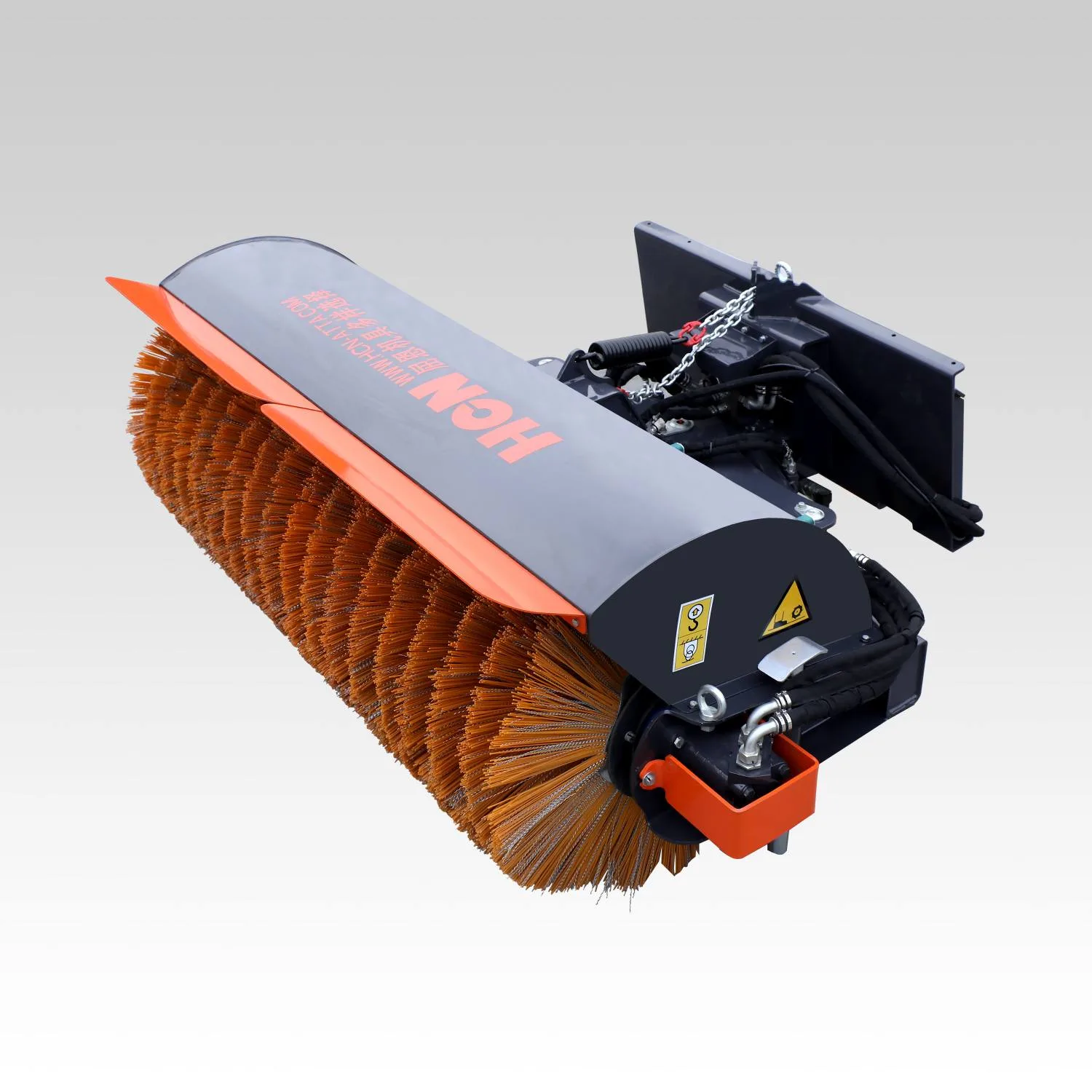

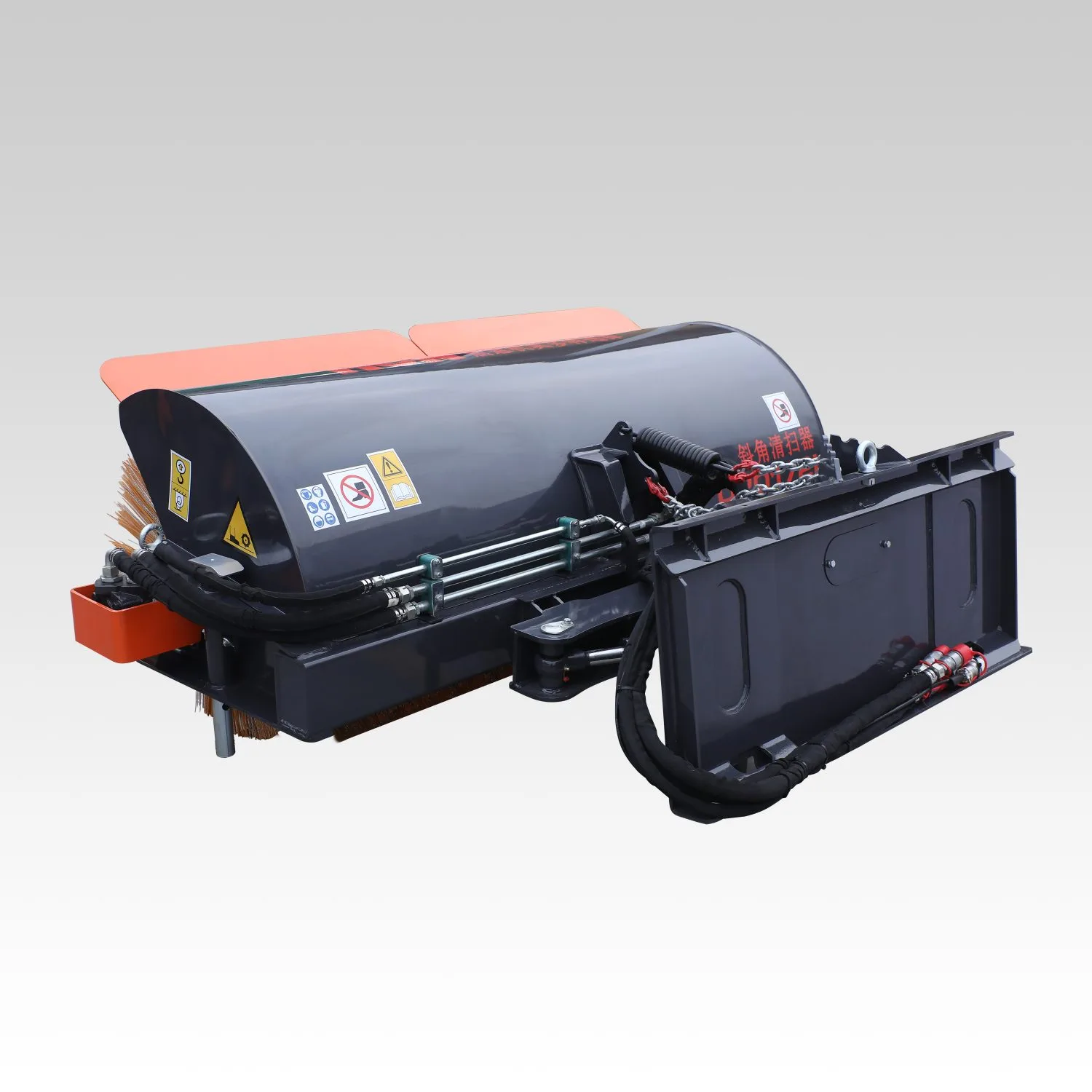

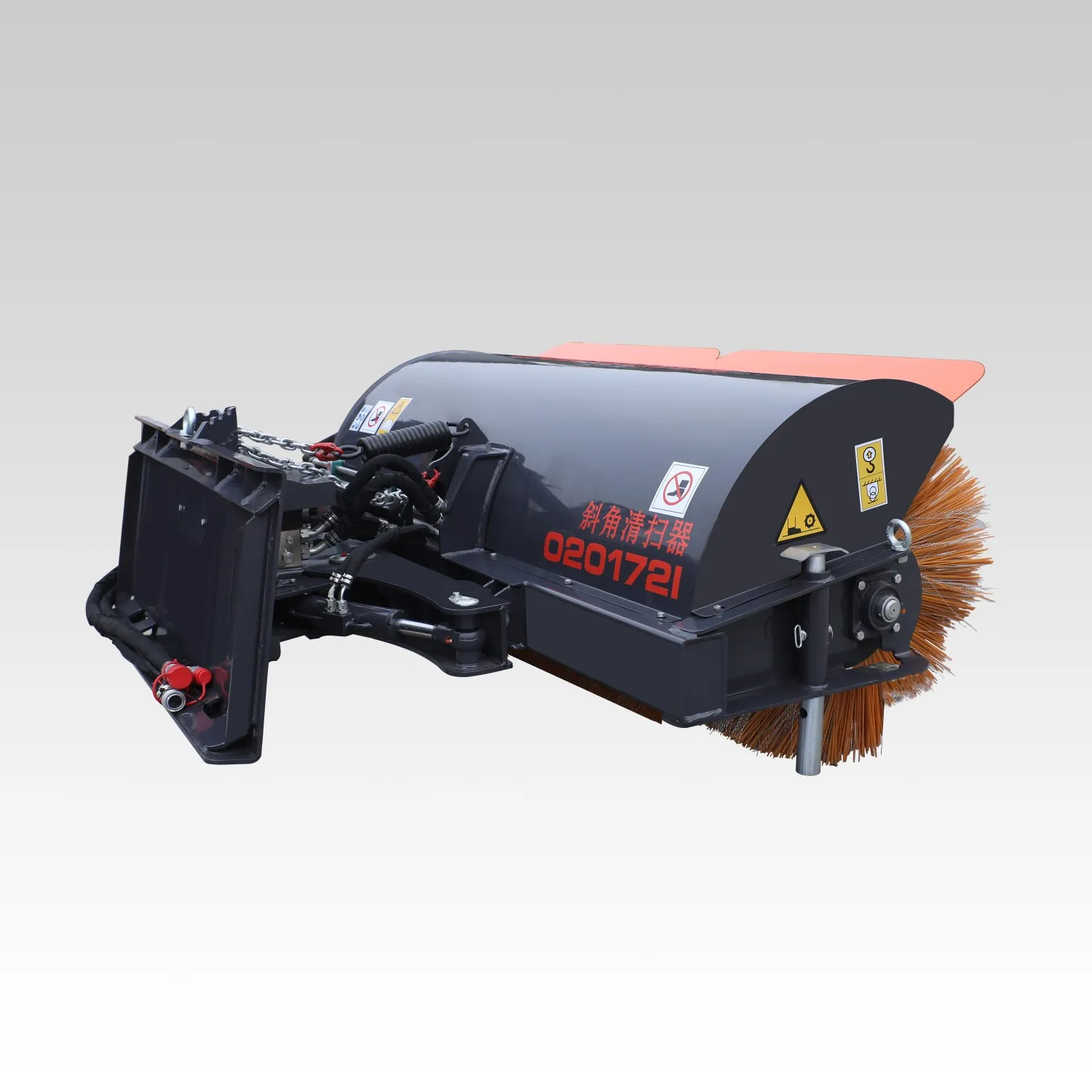

The HCN 72’’ skid steer rotary angle broom is hydraulically driven for cleaning debris, sands and snow on roads, parking lots and other flat areas. The broom can angle left and right, comes with poly/wire mix bristles, an adjustable stand to prevent bristles from damage when unused, and a durable direct-drive hydraulic Eaton motor. Spare wafers are available for purchase separately.

Efficiently sweep and clean with the hydraulically driven angle broom attachment
Heavy-duty broom bristles create a cleaner path and sweep more snow or debris in one pass
Reverse bristle rotation available on the 72-inch and 84-inch angle brooms for enhanced cleaning along curbs, corners and around obstacles
Reversible angle broom is available for all compact track loaders and skid-steer loaders;

This product is backed with a one-year manufacturer warranty,

Category Snow-Removing Attachments

All Products | Request A Quote | Engineering Guides

02 — Engineering

Key Features

Angle BroomFactory-engineered Snow-Removing Attachments attachment from HCN — confirm fitment with your machine data before ordering.
Wheel loader coupler mountingCoupler and pin dimensions matched to loader model.
Heavy-duty steel constructionBuilt for demanding job sites and long service life.
Replaceable wear componentsPractical maintenance for dealers and fleet operators.
Optimized hydraulic performanceDesigned for stable operation within rated flow ranges.

03 — Fitment

Compatible Machines

Confirm machine brand, model, operating weight, and hydraulic flow before ordering. Our team can verify fitment for your market.

Machine Type	Common Brands	Fitment Notes
Wheel Loader	CAT, Volvo, XCMG, SDLG	Loader model and pin dimensions required

04 — Jobsite

Applications

05 — Data

Specifications

Features:

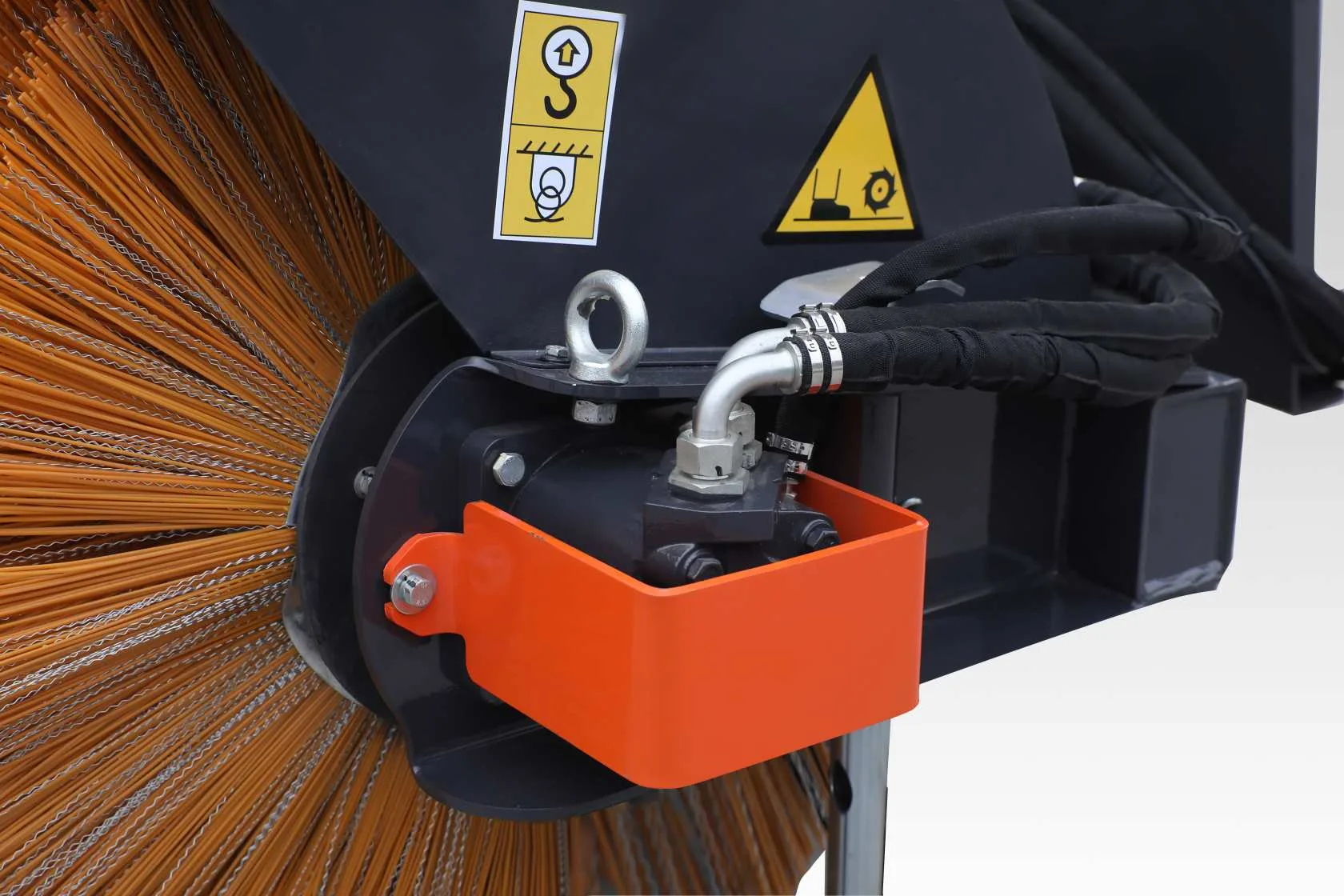

· Durable direct-drive hydraulic Eaton motor works more efficiently and reduces downtime

· Floating linkage design keeps the broom adapt to the road surface properly and consistently, reducing the bristles wearing

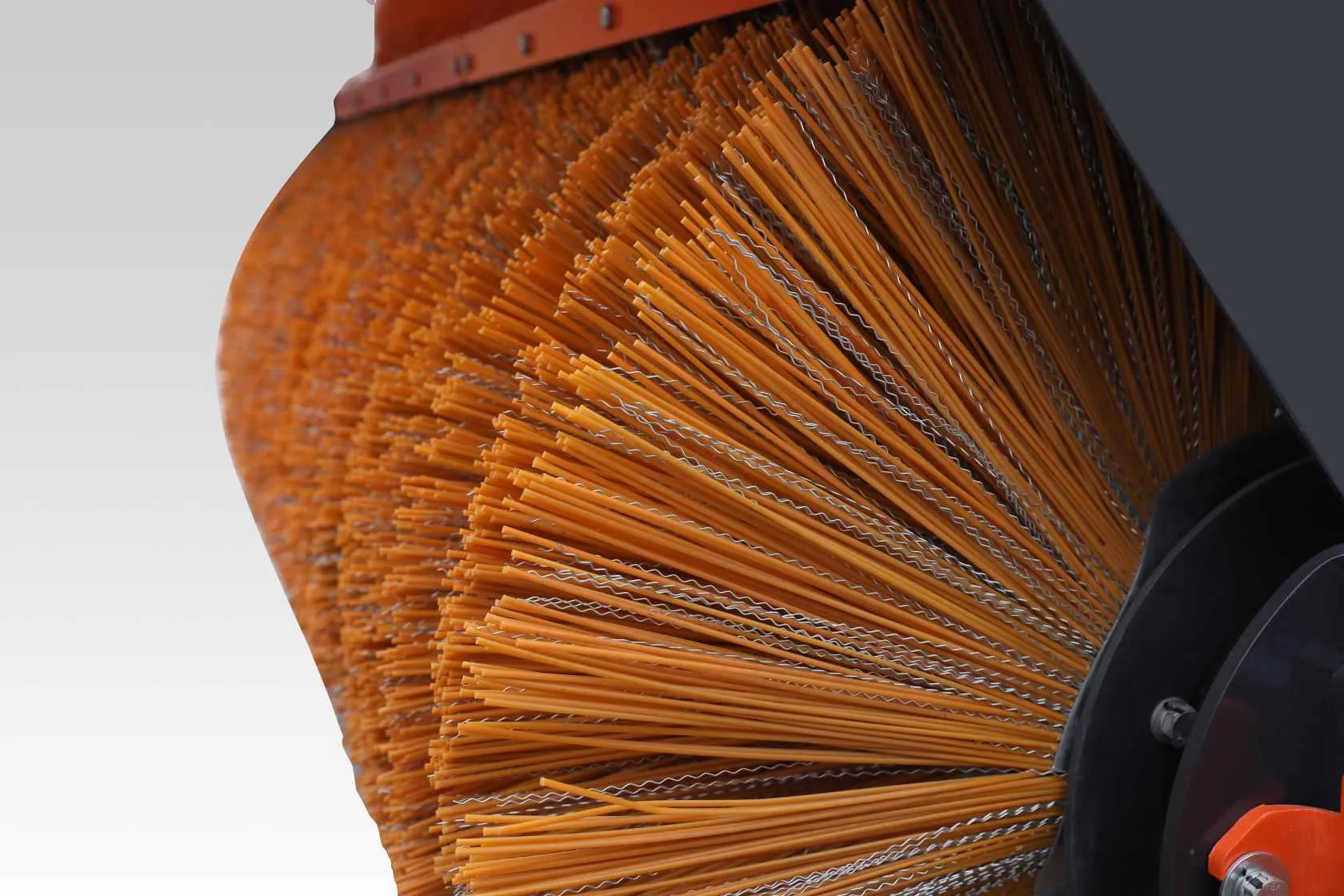

· Poly/wire mix bristles

· Adjustable protection metal stand

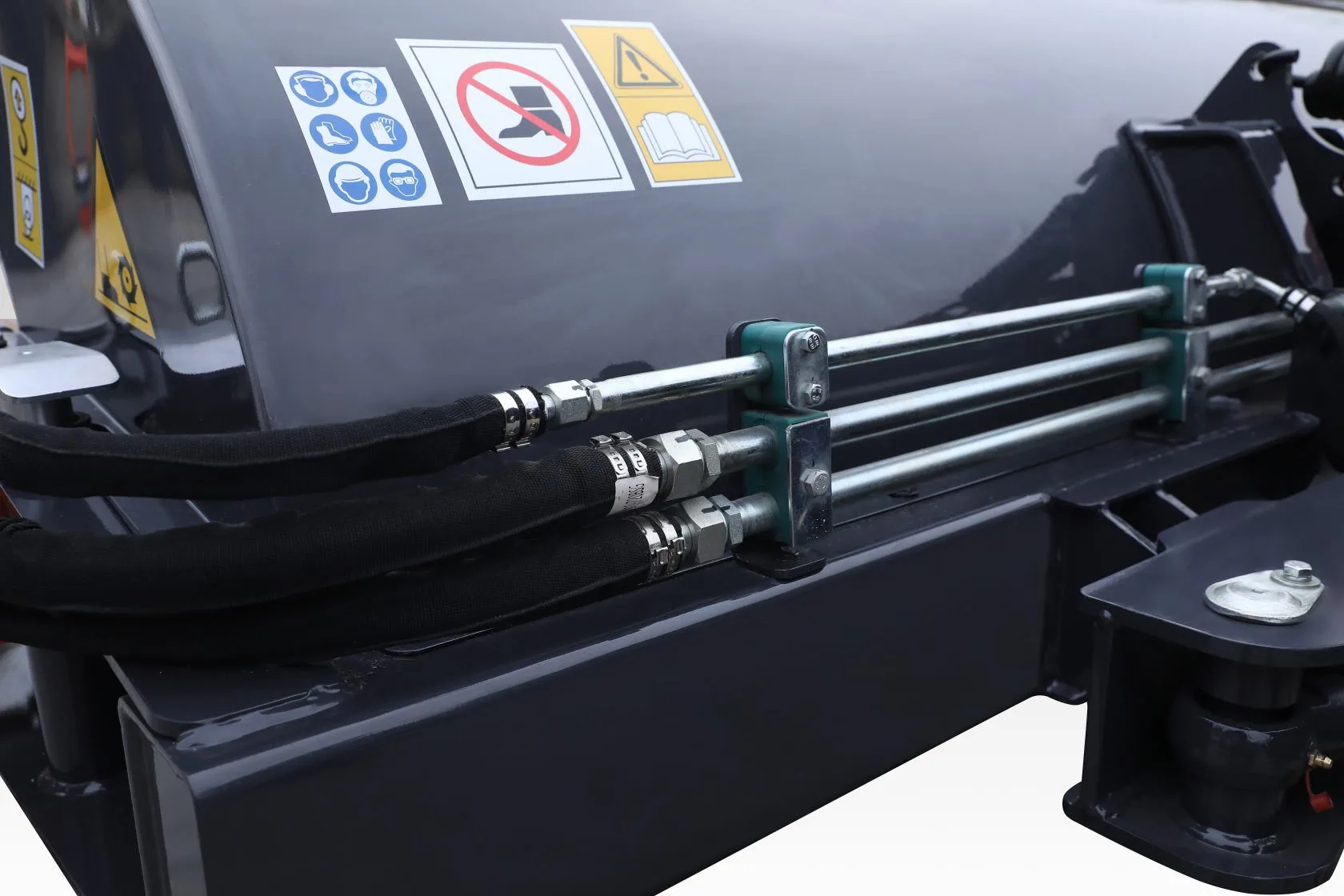

· Hydraulic hoses included

· The case drain line (the third hose) provides the option to release motor case pressure and alternatively extend motor lifetime.

· Bi-directional rotation bristles

· A motor protection guard frame installed

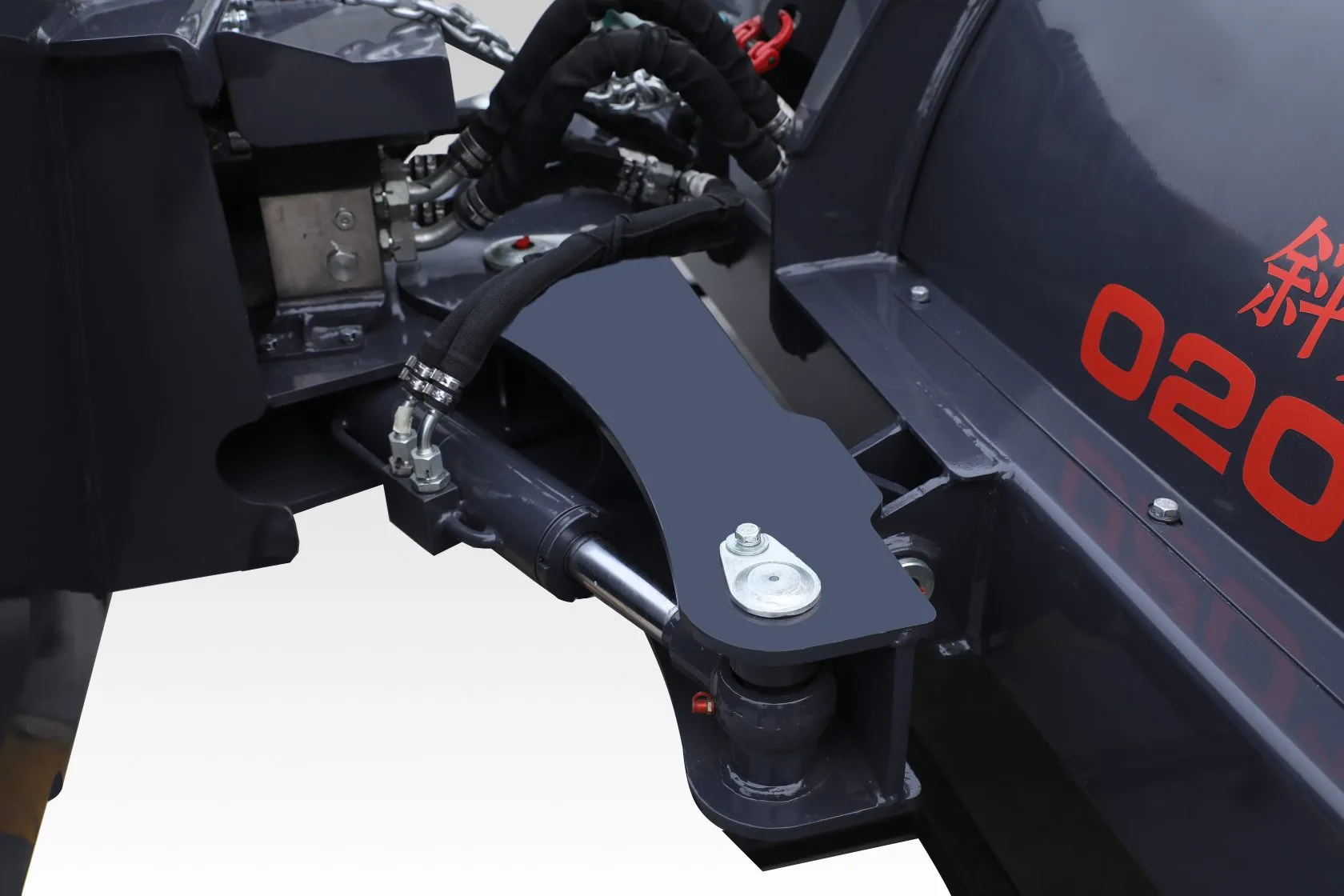

· One cylinder hydraulic,two cylinder hydraulic and manual angle rotating design optional

Specifications:

· Working width: 60”,72”,84”

· Number of wafers: 41

· Brush diameter: 31.5"

· Core diameter: 10.04”

· Sweeping width at 30° angle: 63”

· Maximum angle (left and right): +/- 30°

· Hydraulic flow: Min. 10 GPM to Max 25 GPM

· Compatible to use high-flow

Packaging:

· Packed in a metal shipping crate

· Shipping dimension: 89’’ x 57’’ x 31’’

· Shipping weight: 1230 lb

0201 Angle Broom

Model	020160 I	020172 I	020184 I
Overall Length (mm)	1625	1625	1625
Overall Width (mm)	1804	2163	2435
Overall Height (mm)	870	870	870
Overall Weight (mm)	500	545	575
Working Width （kg）	1500	1800	2100
Turning Angle (°)	±30°	±30°	±30°
Working Width at 30°(mm)	1250	1550	1850
Brush Diameter (Φmm)	Φ800	Φ800	Φ800
Working Pressure (Mpa)	21	21	21
Working Flow （L/Min）	70-85	80-100	80-100
Working Voltage （V）	DC12/24	DC12/24	DC12/24
Package Volume (m3)	4.096	4.830	5.385
Brush Quantity (piece)	30	37	41
Electrical and hydraulic control

06 — Programs

OEM & Custom Options

HCN supports dealer, distributor, and private-label programs with configurable mounting, hydraulics, finish, and packaging.

Dimensions & capacity Custom width, working depth, capacity, and duty configuration for your market.
Mounting interface Quick-attach plates, coupler geometry, and pin dimensions matched to machine data.
Hydraulic setup Standard-flow / high-flow options and circuit layout confirmed before production.
Private label Color, logo, nameplate, and export packaging for OEM and distributor brands.
After-sales kits Wear parts and spare kits for dealer stock and field service support.
Export packing Steel frame or crate packing prepared for container loading and destination handling.

Share annual volume, destination country, and branding requirements for a manufacturing proposal.

20+Years manufacturing attachments
400+Attachment models in portfolio
21,000㎡Modern production facility
CE / ISOQuality systems for export markets

07 — Buying

FAQ

What machines is Angle Broom compatible with?

Send machine brand, exact model, operating weight, and hydraulic flow/pressure for Angle Broom. We confirm the mounting interface and recommend the correct configuration before quotation.

What information do you need for an accurate quote on Angle Broom?

Machine brand and model, quantity, destination country/port, and any OEM mounting or branding requirements. Photos or coupler drawings help when available.

What hydraulic flow does Angle Broom require?

Requirements vary by duty cycle. Check the specification table on this page, or send your machine hydraulic data for verification before ordering.

Can Angle Broom mounting and branding be customized?

Yes. HCN supports custom mounting plates/couplers, hydraulic options, color, logo, and export packaging for dealer and OEM programs.

How fast can I get a quotation for Angle Broom?

Click Request A Quote, email nancy@hcn-tech.com, or call +86 185 5285 3111. Complete inquiries are usually answered within 1 business day.
