0208I Snow Blade

Snow Clearing

0208I Snow Blade — factory-direct from HCN
OEM / private label available for Snow-Removing Attachments
Fitment confirmed from machine model data
Quote reply usually within 1 business day

Contact Export Team

Share machine brand/model, hydraulic flow, quantity and destination country for an accurate quotation.

CategorySnow-Removing Attachments
Supportnancy@hcn-tech.com

01 — Product

Product Overview

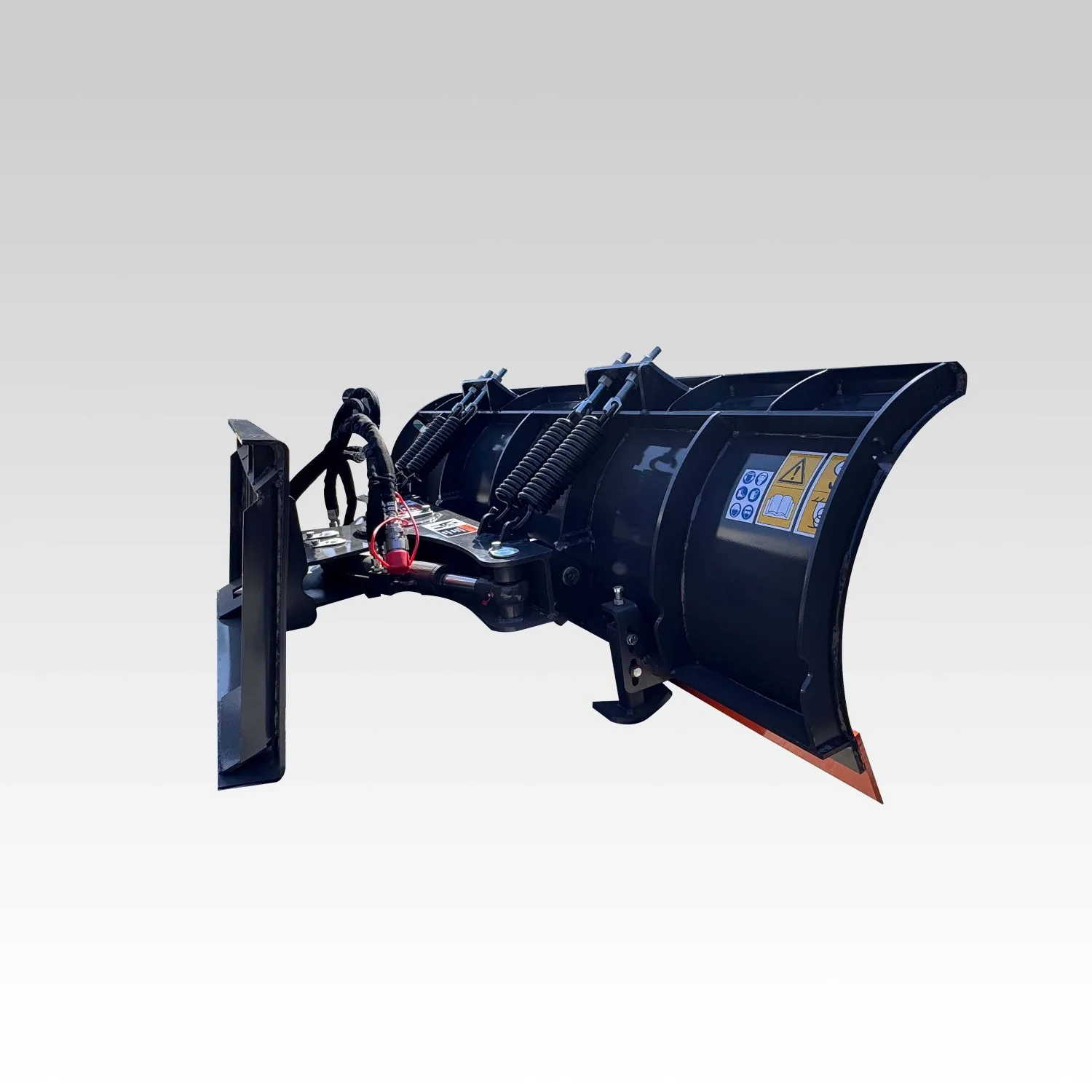

HCN Snow Blades are available with hydraulic angles up to 30° in either direction, depending on the model and are installed with replaceable wear edges, adjustable skid shoes and spring-loaded trip mechanisms. This product is also available CE certified.

Category Snow-Removing Attachments

All Products | Request A Quote | Engineering Guides

02 — Engineering

Key Features

0208I Snow BladeFactory-engineered Snow-Removing Attachments attachment from HCN — confirm fitment with your machine data before ordering.

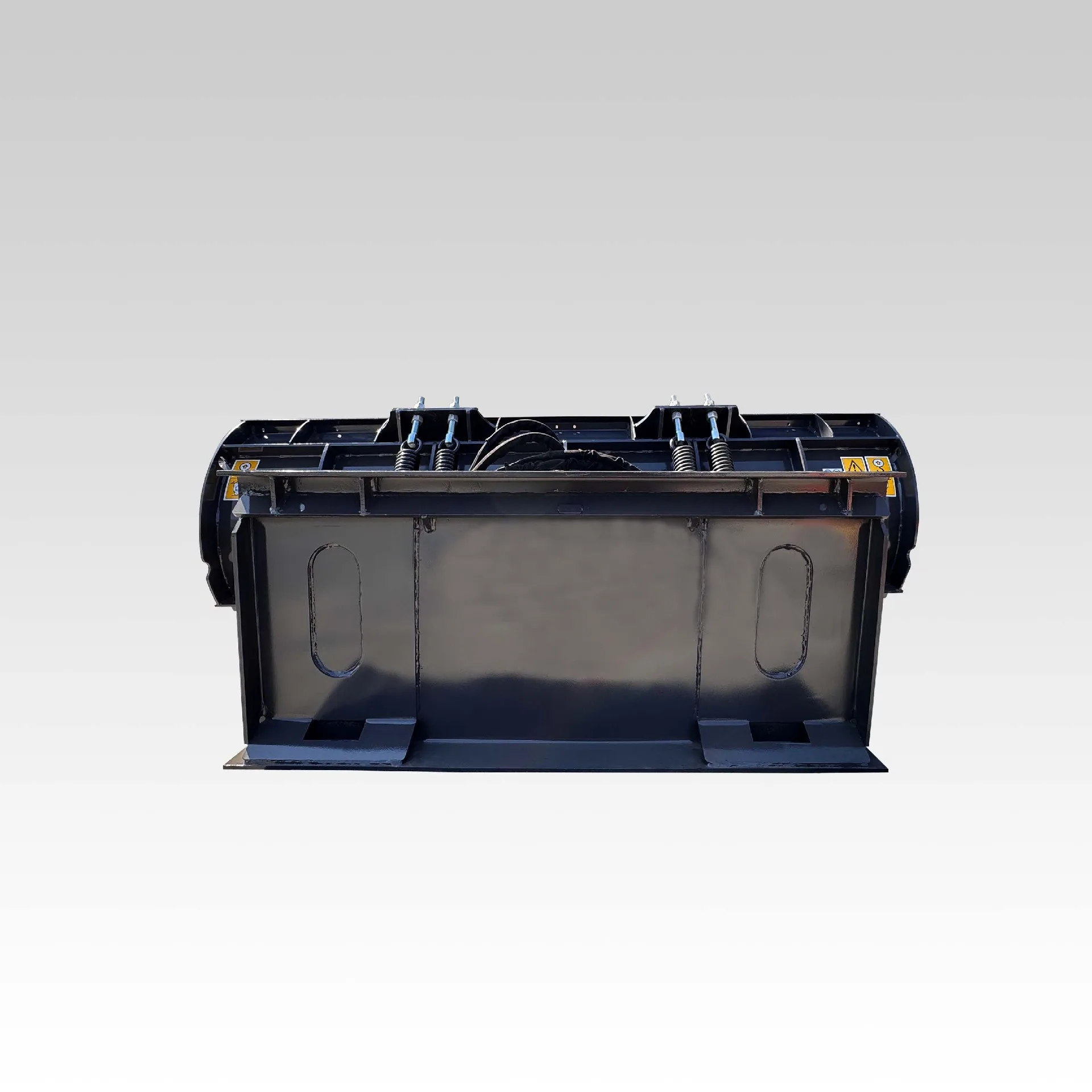

Wheel loader coupler mountingCoupler and pin dimensions matched to loader model.
Heavy-duty steel constructionBuilt for demanding job sites and long service life.
Replaceable wear componentsPractical maintenance for dealers and fleet operators.
Optimized hydraulic performanceDesigned for stable operation within rated flow ranges.

03 — Fitment

Compatible Machines

Confirm machine brand, model, operating weight, and hydraulic flow before ordering. Our team can verify fitment for your market.

Machine Type	Common Brands	Fitment Notes
Wheel Loader	CAT, Volvo, XCMG, SDLG	Loader model and pin dimensions required

04 — Jobsite

Applications

05 — Data

Specifications

· Hydraulically angles 30 degrees in either direction

· Replaceable bolt-on wear edge; optional rubber edge

· Skid shoes with adjustable height

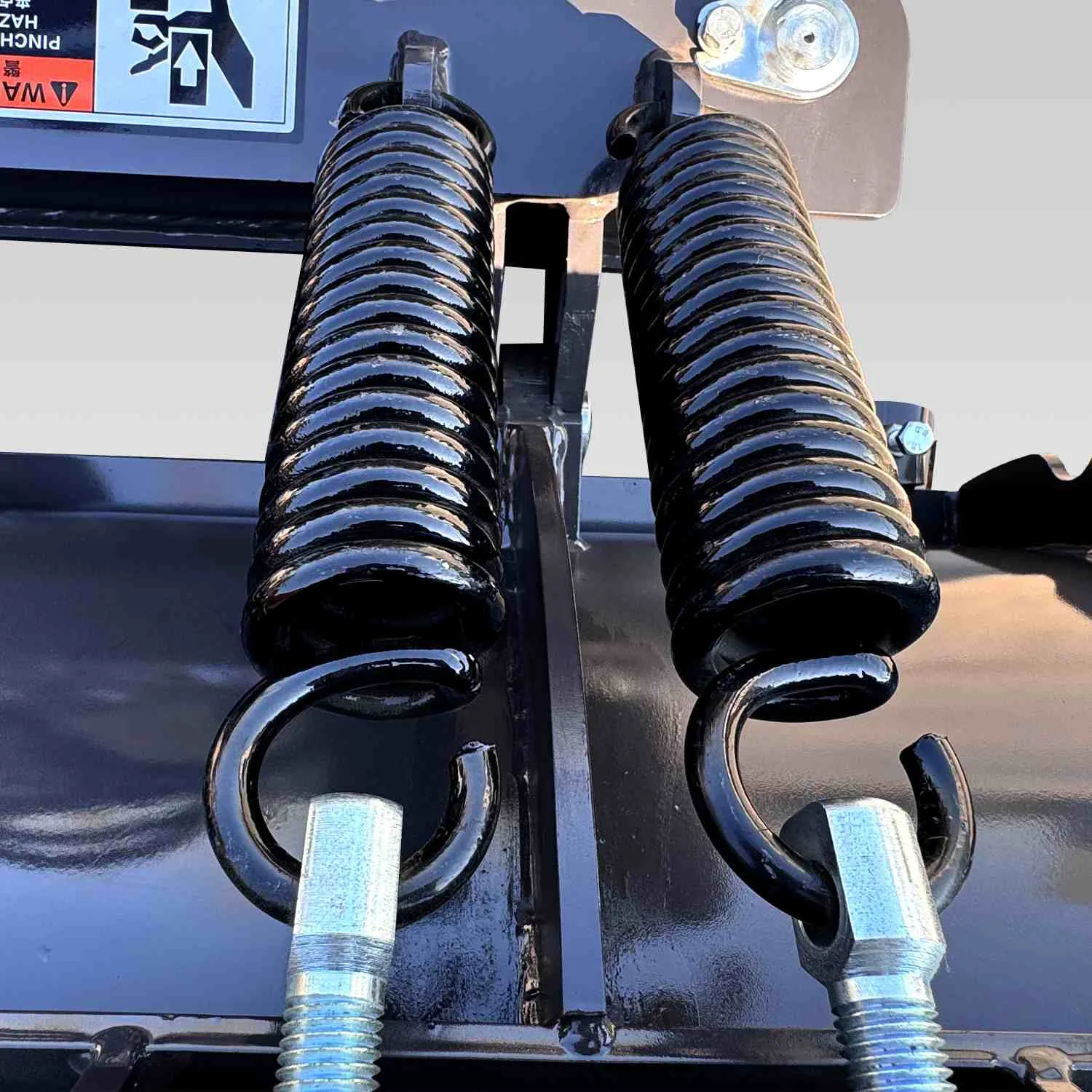

· Spring-loaded trip mechanism

· Plow through the deepest drifts and push large piles of snow

· Fingertip controls make it easy to configure the hydraulically operated blade

· Standard, high-carbon steel cutting edge

· Trip moldboard reduces potential impact damage from obstructions

· The moldboard angles as much as 30 degrees right or left up to 30 degrees for protection. Standard snow blades feature a trip moldboard and heavy-duty snow blades feature a trip edge.

· The long-lasting depth shoes are adjustable to match your conditions.

· A high-carbon steel cutting edge is standard on the snow blade. Rubber and polyurethane edges also are available.

· Remove light or moderate snow from sidewalks, driveways and parking lots

· Fingertip controls make it easy to configure the hydraulically operated blade, tackling any snow removal job on the go. With the standard, high-carbon steel cutting edge.

SPECIFICATIONS / OPTIONS

Model	020860I	020872I	020884I	020896I
Overall Width (mm)	1575	1830	2130	2430
Overall Length (mm)	1010	1010	1010	1010
Transport Height (mm)	635	635	635	635
Overall Height (mm)	978	978	978	978
Operating Width when rotated to Angle 30° (mm)	1300	1580	1845	2100
Deflection angle（F）°	±30	±30	±30	±30
Working Speed (Km/h)	3～60	3～60	3～60	3～60
Weight(Kg)	280	295	312	325
Against-Obstacle Height (mm)	≤80	≤80	≤80	≤80
Working Pressure(mpa)	14-21	14-21	14-21	14-21

06 — Programs

OEM & Custom Options

HCN supports dealer, distributor, and private-label programs with configurable mounting, hydraulics, finish, and packaging.

Dimensions & capacity Custom width, working depth, capacity, and duty configuration for your market.
Mounting interface Quick-attach plates, coupler geometry, and pin dimensions matched to machine data.
Hydraulic setup Standard-flow / high-flow options and circuit layout confirmed before production.
Private label Color, logo, nameplate, and export packaging for OEM and distributor brands.
After-sales kits Wear parts and spare kits for dealer stock and field service support.
Export packing Steel frame or crate packing prepared for container loading and destination handling.

Share annual volume, destination country, and branding requirements for a manufacturing proposal.

20+Years manufacturing attachments
400+Attachment models in portfolio
21,000㎡Modern production facility
CE / ISOQuality systems for export markets

07 — Buying

FAQ

What machines is 0208I Snow Blade compatible with?

Send machine brand, exact model, operating weight, and hydraulic flow/pressure for 0208I Snow Blade. We confirm the mounting interface and recommend the correct configuration before quotation.

What information do you need for an accurate quote on 0208I Snow Blade?

Machine brand and model, quantity, destination country/port, and any OEM mounting or branding requirements. Photos or coupler drawings help when available.

What hydraulic flow does 0208I Snow Blade require?

Requirements vary by duty cycle. Check the specification table on this page, or send your machine hydraulic data for verification before ordering.

Can 0208I Snow Blade mounting and branding be customized?

Yes. HCN supports custom mounting plates/couplers, hydraulic options, color, logo, and export packaging for dealer and OEM programs.

How fast can I get a quotation for 0208I Snow Blade?

Click Request A Quote, email nancy@hcn-tech.com, or call +86 185 5285 3111. Complete inquiries are usually answered within 1 business day.
