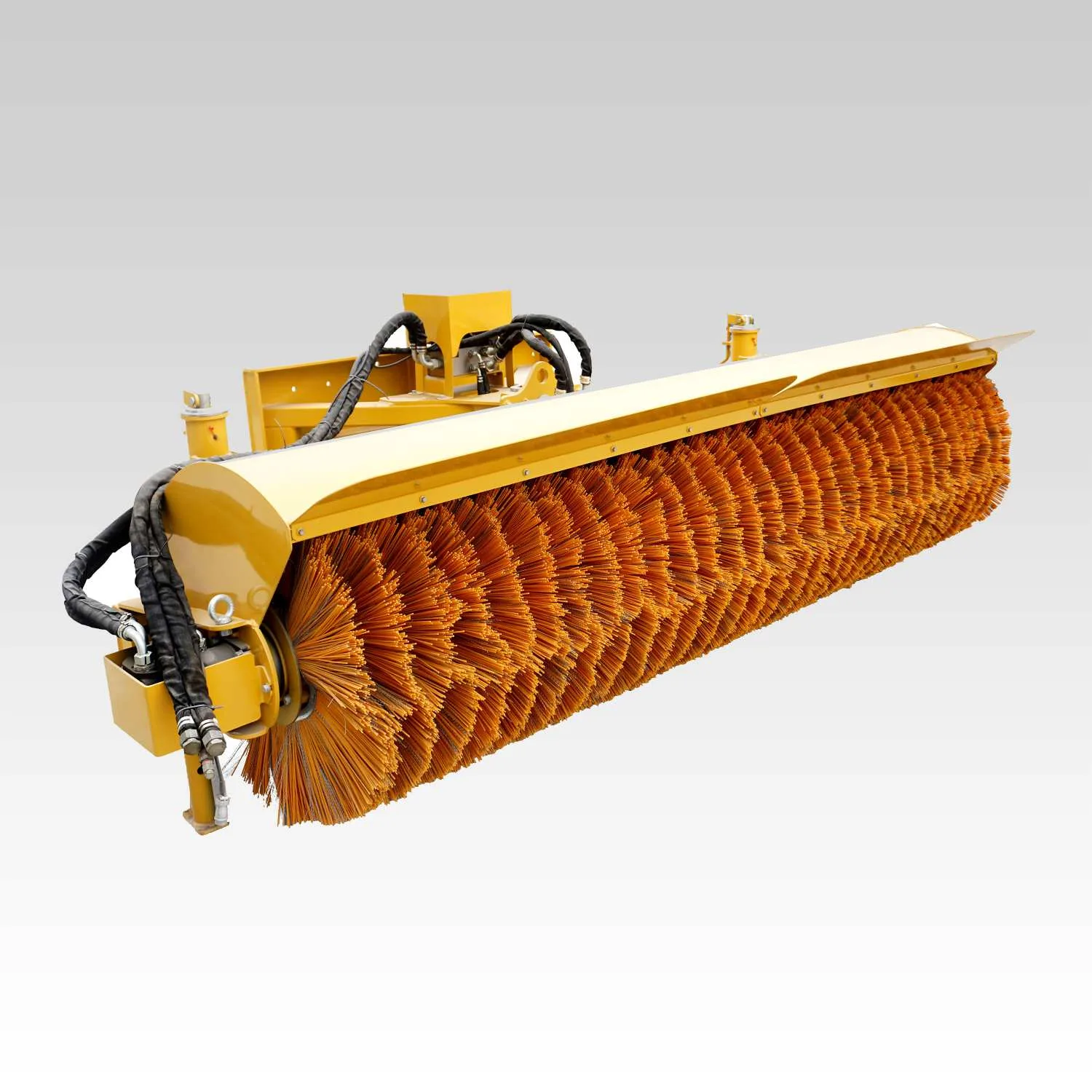

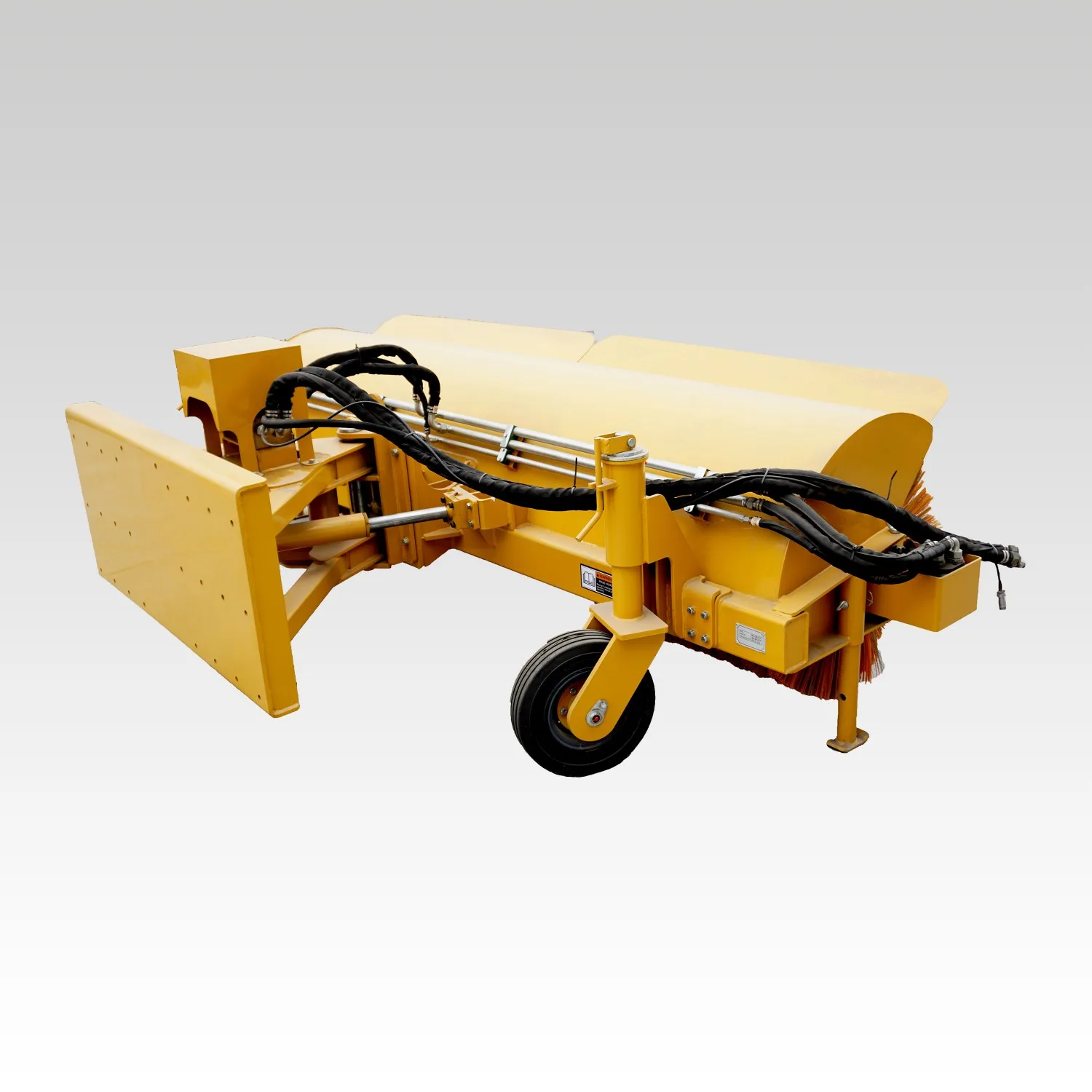

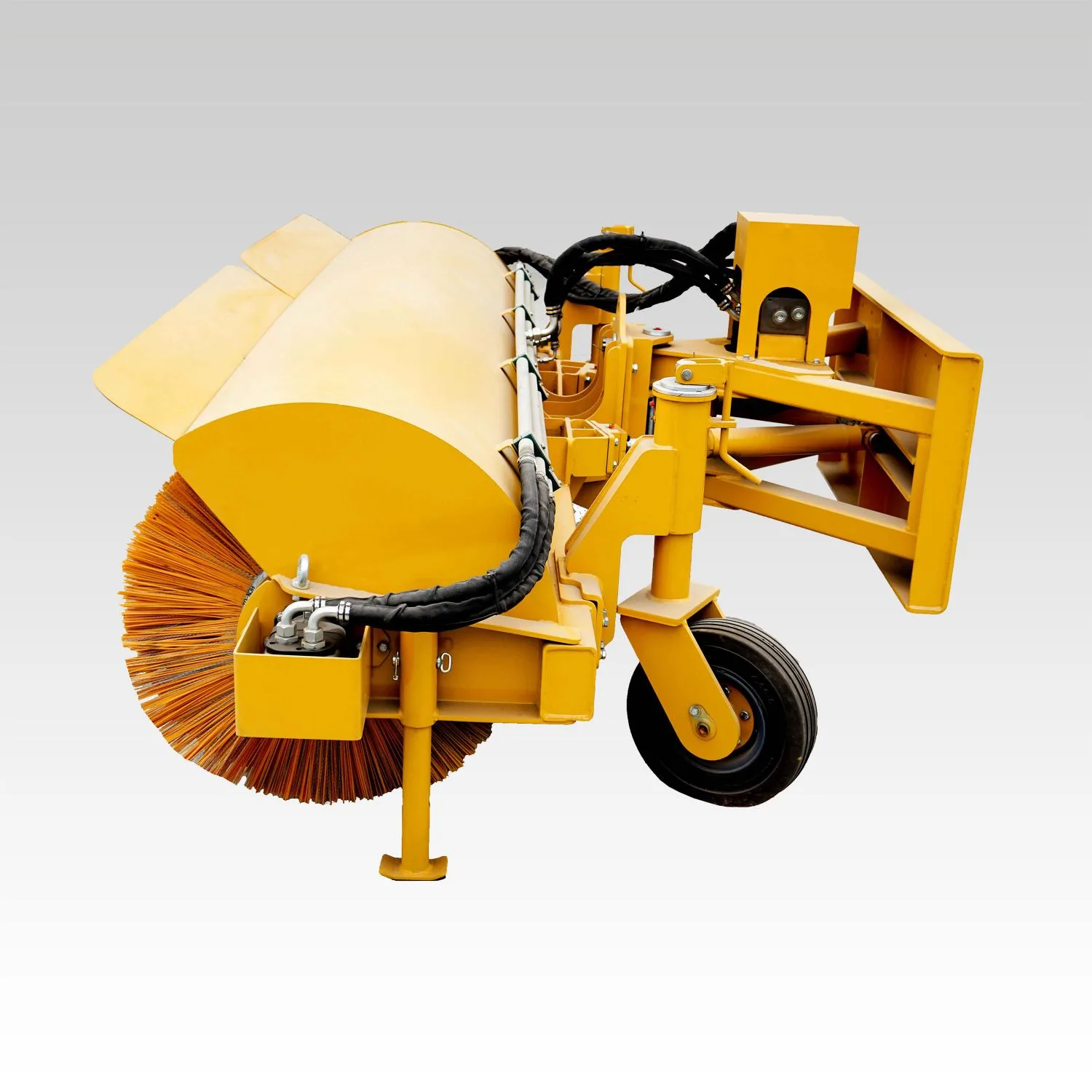

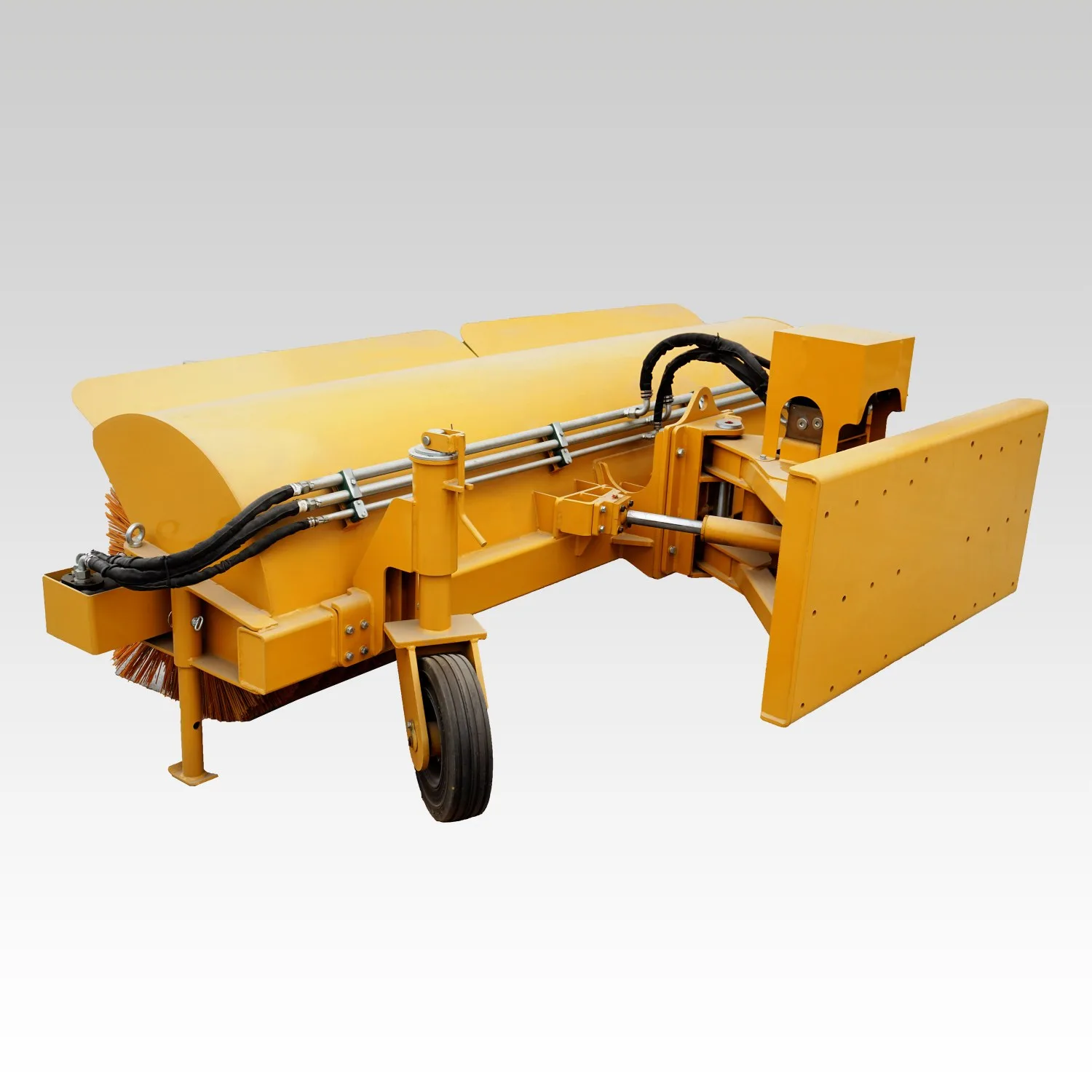

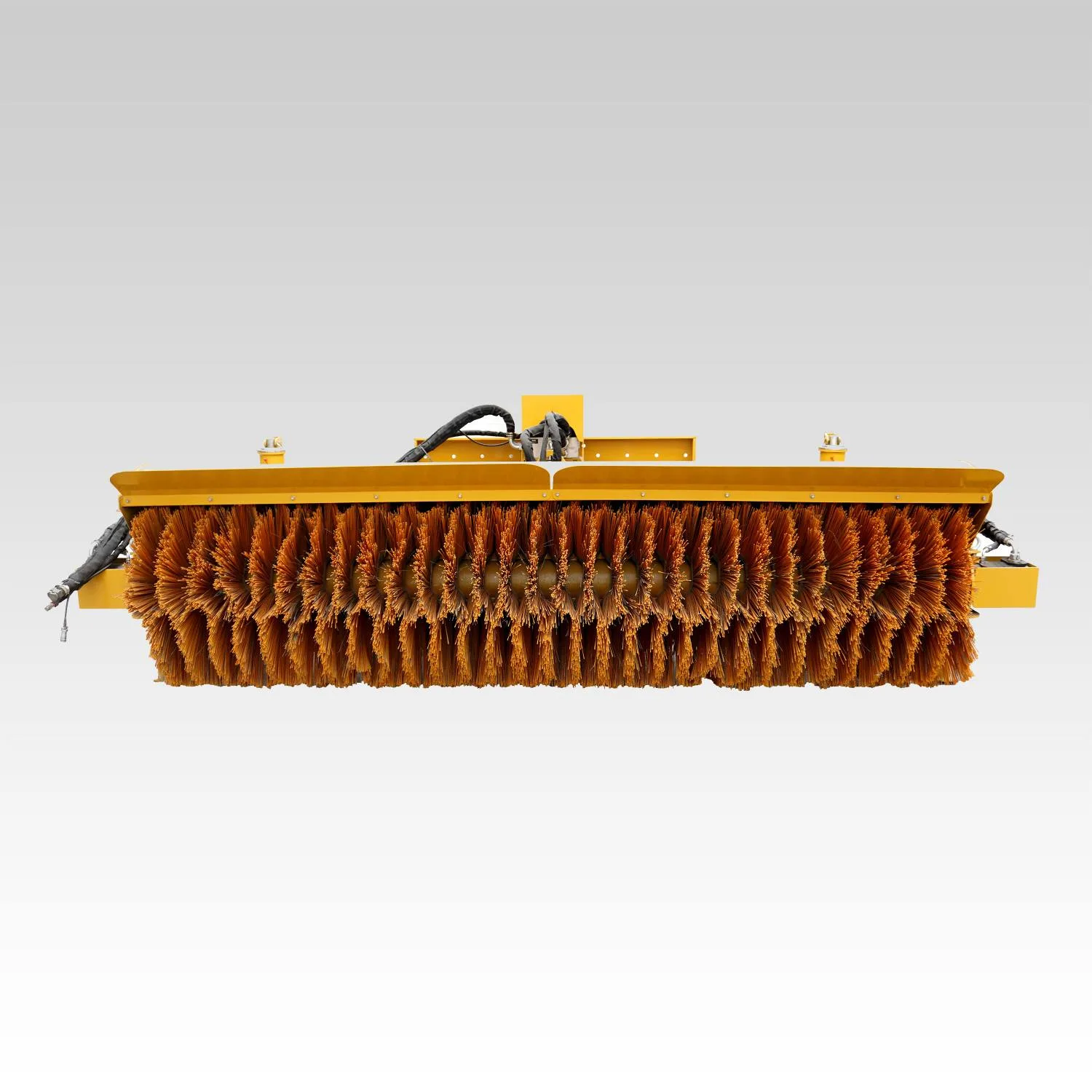

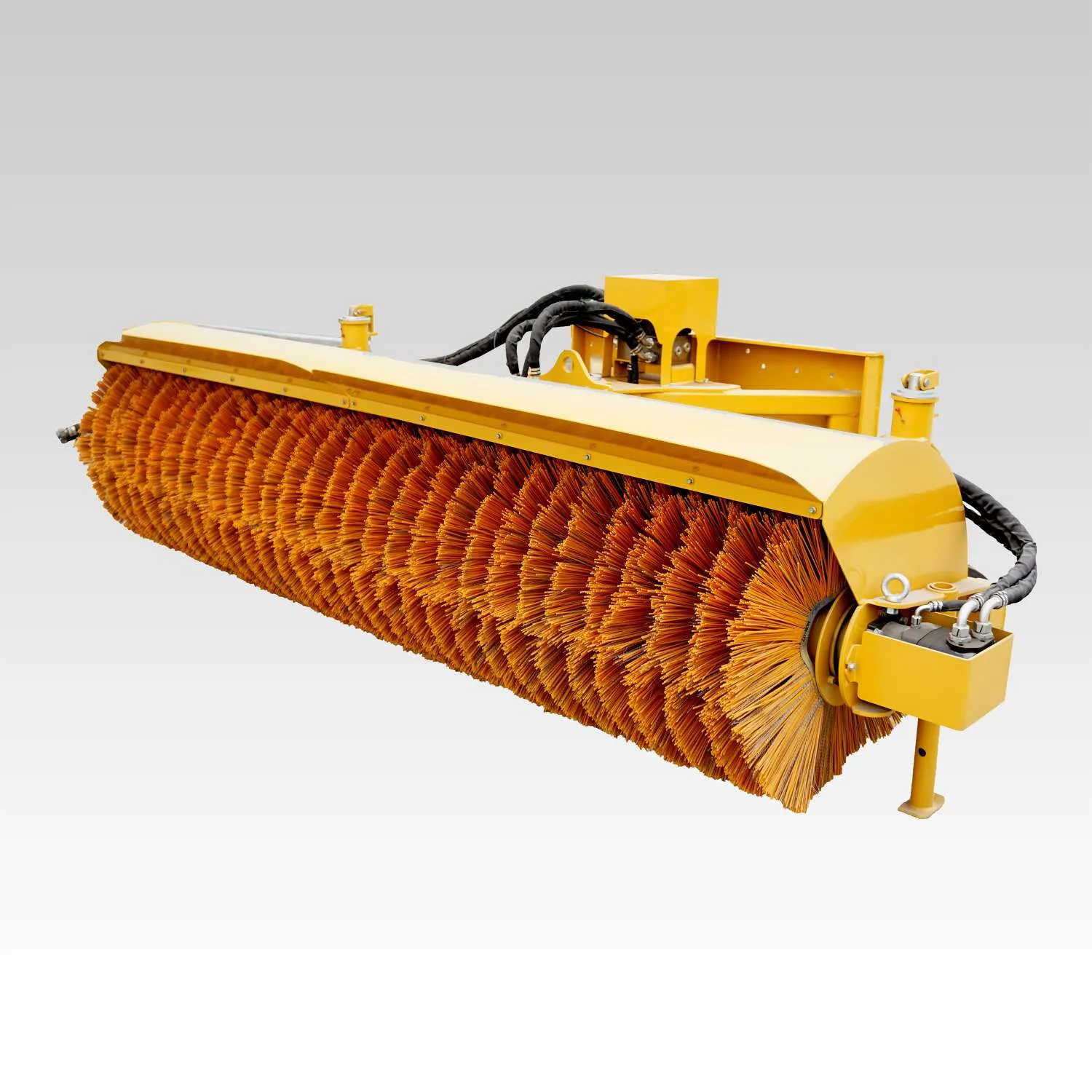

BM11D Angle Broom

This machine can quickly clean up the snow and dirt on the streets, squares and highways, and it will not damage the paving surface of the road surface. It has the characteristics of convenient installation, flexible use, high work efficiency, reliable quality and superior performance.

1, with natural loose snow as the main removal object, front type large diameter polypropylene, steel wire mixed brush roller, has the advantages of wear resistance, elastic bending resistance, no damage to the road surface.

2. Left and right steering of the snow removal rolling brush can be realized by the hydraulic drive, and the steering Angle can be adjusted within ± 30, so as to change the direction of snow clearing.

3. The rolling brush can swing around the slope along the road, which can not only improve the snow removal effect, but also make the rolling brush always maintain uniform contact with the road surface, and the wear is also very uniform, improving the service life of the rolling brush.

4. The front upper part of the front roll brush is equipped with a snow blocking device, which can prevent the snow fog formed by high-speed snow clearing from falling on the cab and affecting the driver's line of sight.

5. The roller brush adopts the support wheel design to greatly improve the utilization rate of the brush, reduce the impact of the loader on the product, and extend the service life of the product.

6, the brush height can be adjusted without pole, accurately control the brush amount, easy to operate, save cost.

7. The controller placed in the cab can complete the left and right deflection and rolling brush rotation functions of the snow removal machine. The keys and operation handle of the controller are flexible and reliable, and convenient to operate.

8. There are visual width benchmarks at both ends of the rolling brush, which is convenient for operators to operate.

9, the use of single beam frame support structure, can well meet the requirements of high strength operation, reduce the weight of the product.

10, the motor half built-in structure, effectively reduce the width of the product, strengthen the protective motor cover to protect the motor from damage.

11. Please install the limit block (bucket and bucket) according to the situation of the host.
