0513 Series Forestry Mulcher

Forestry Clearing

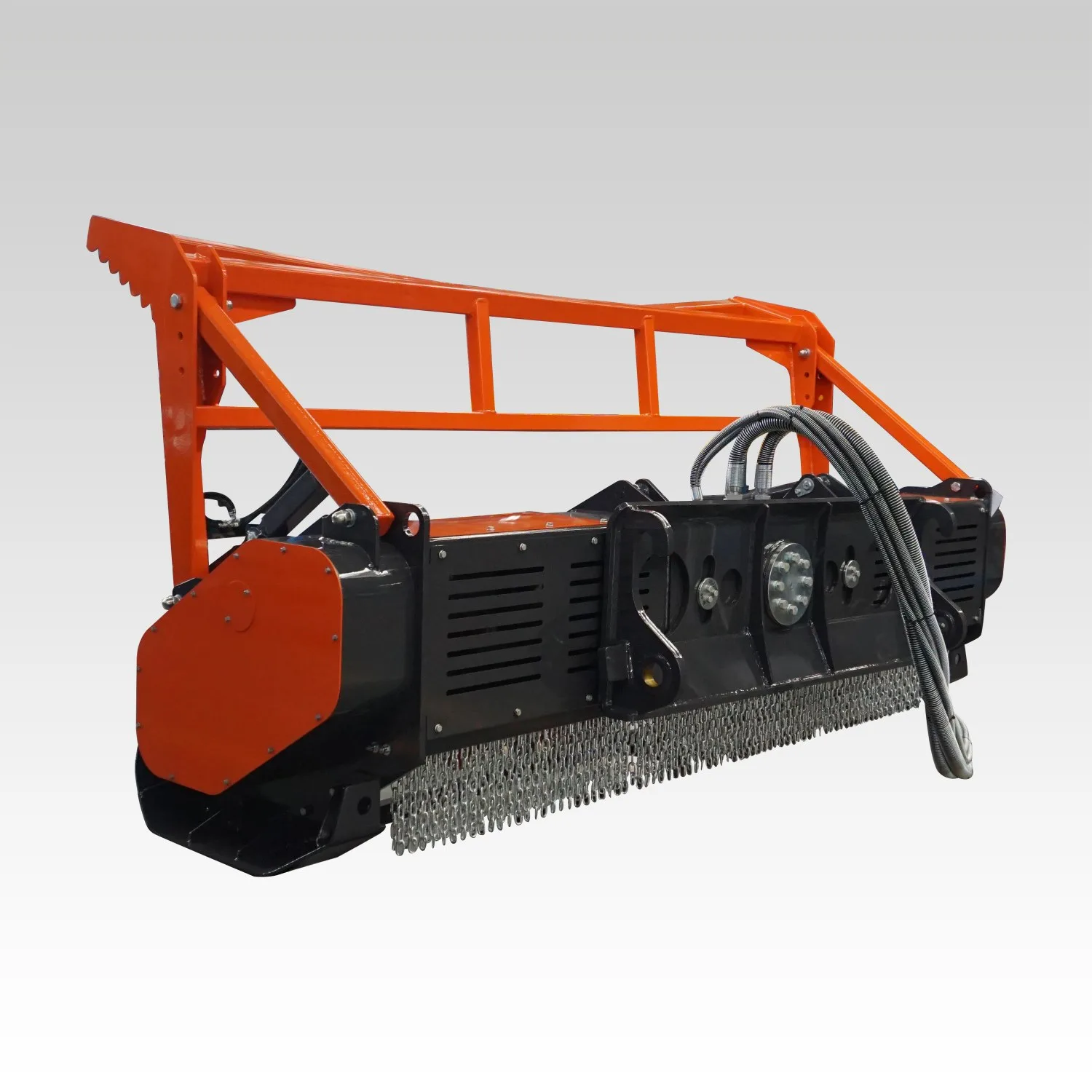

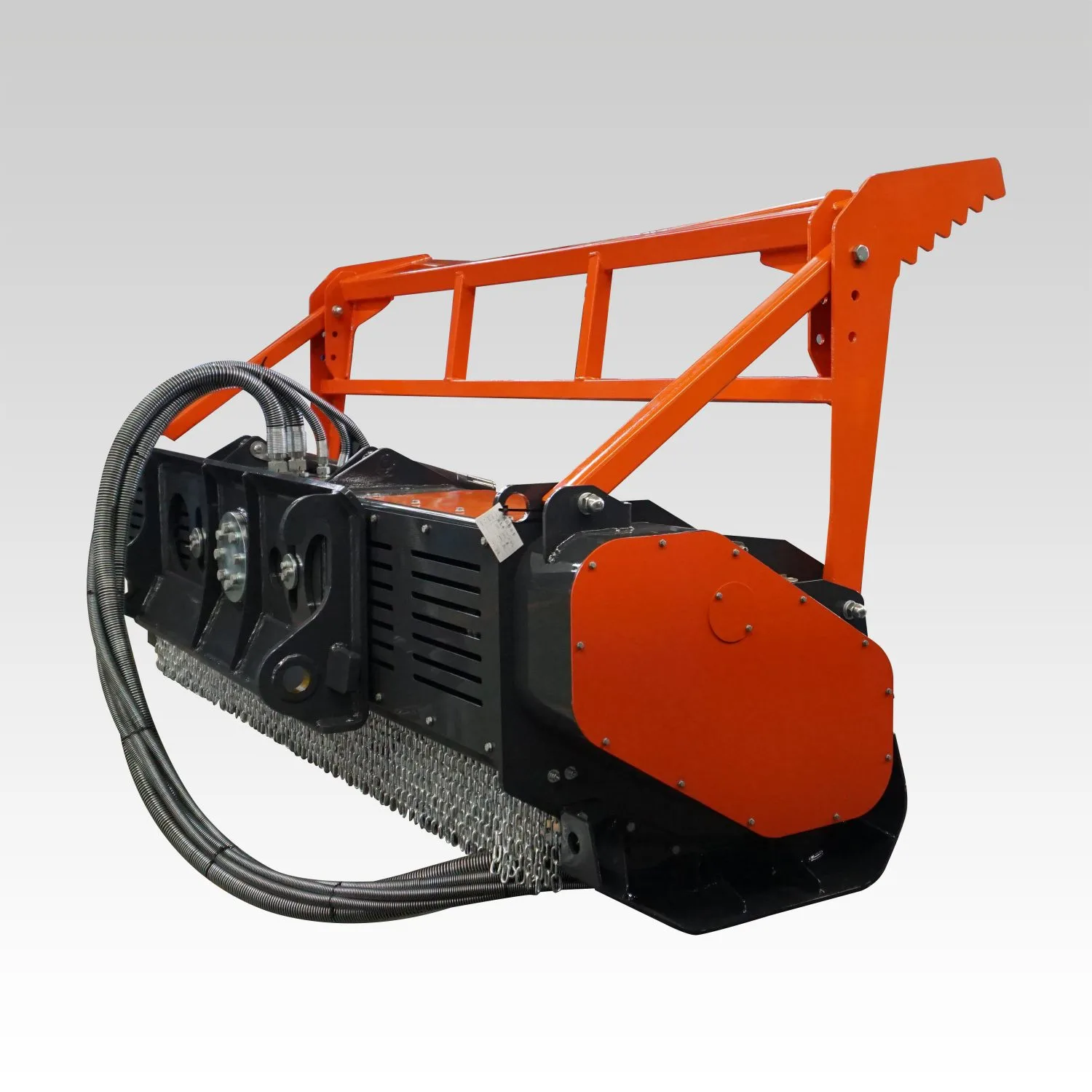

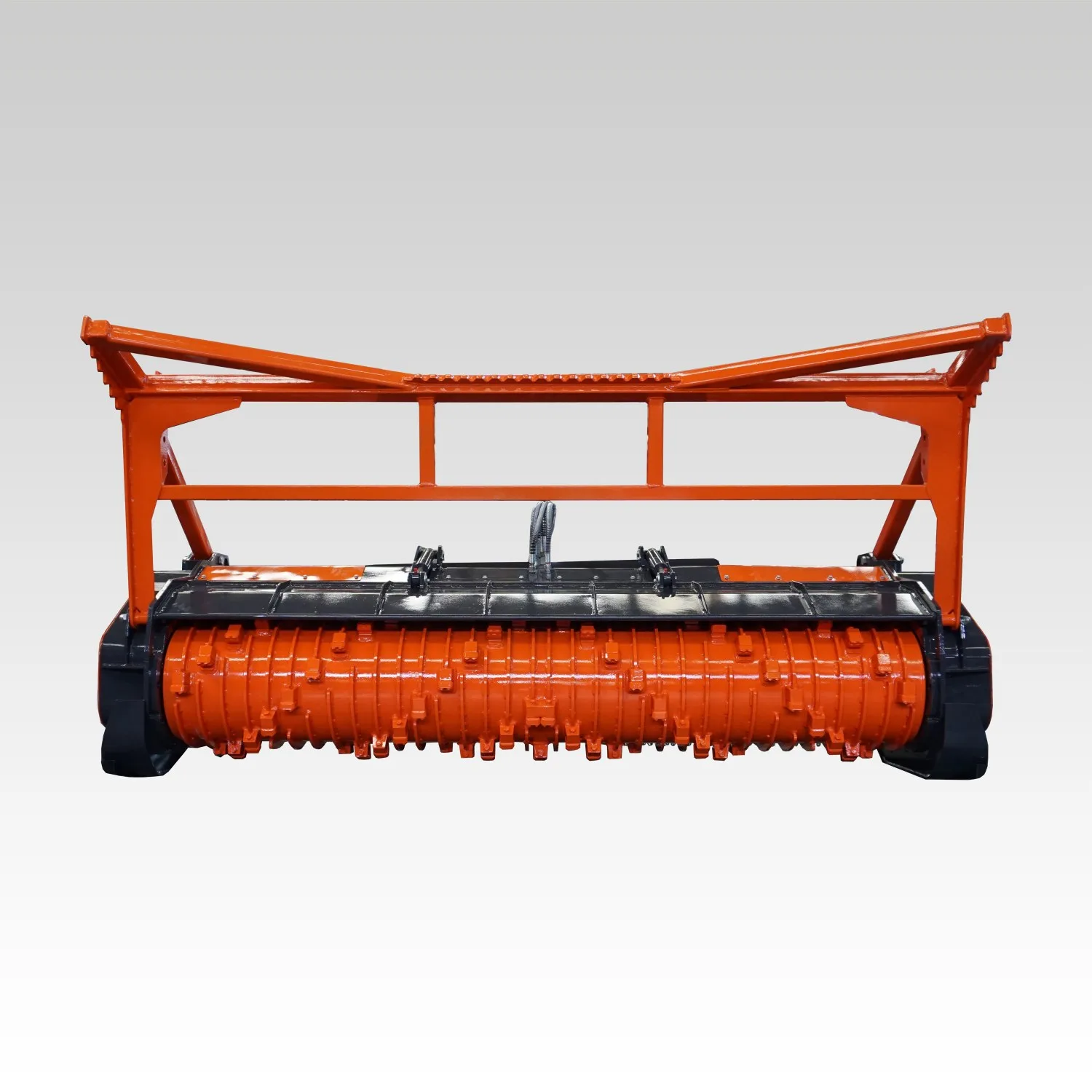

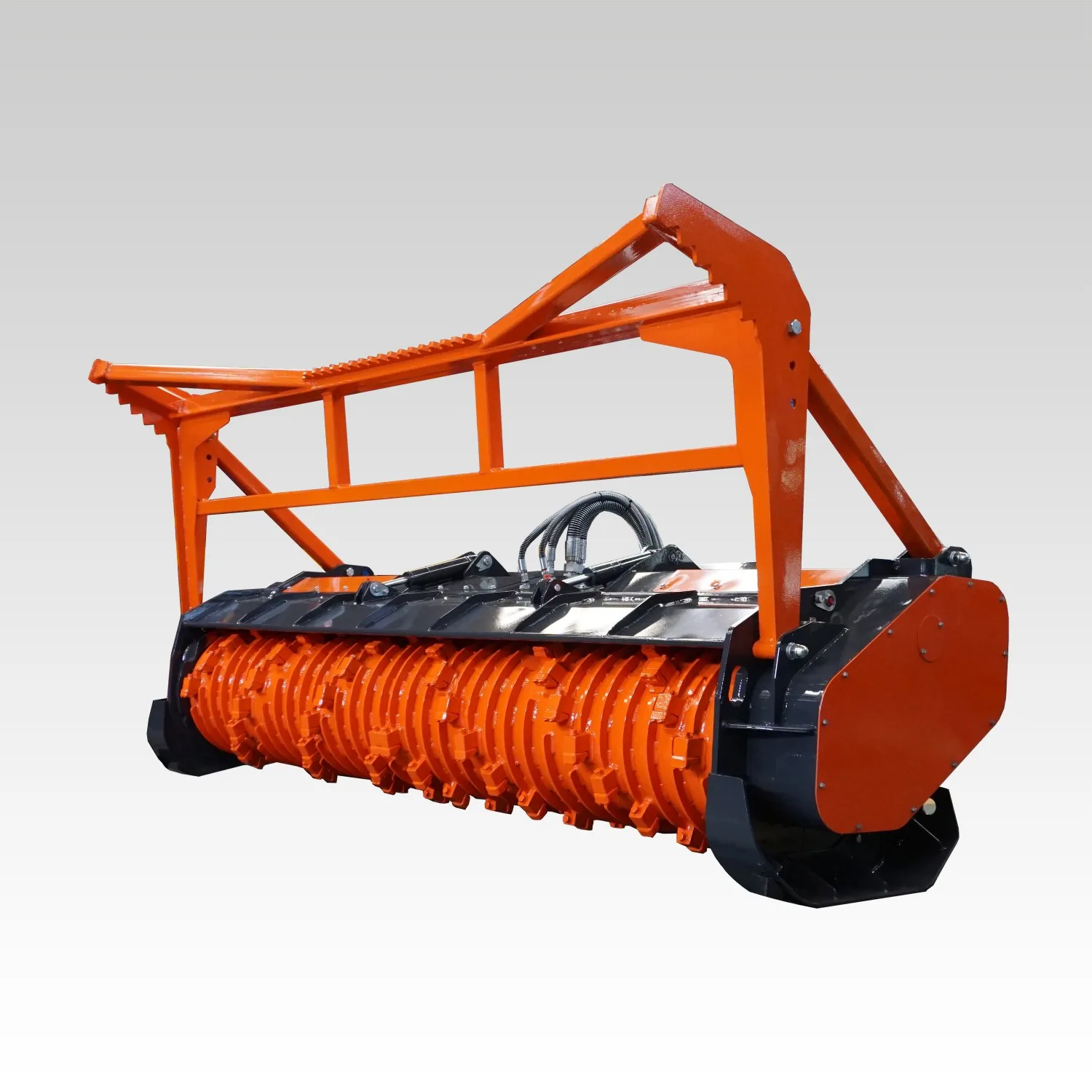

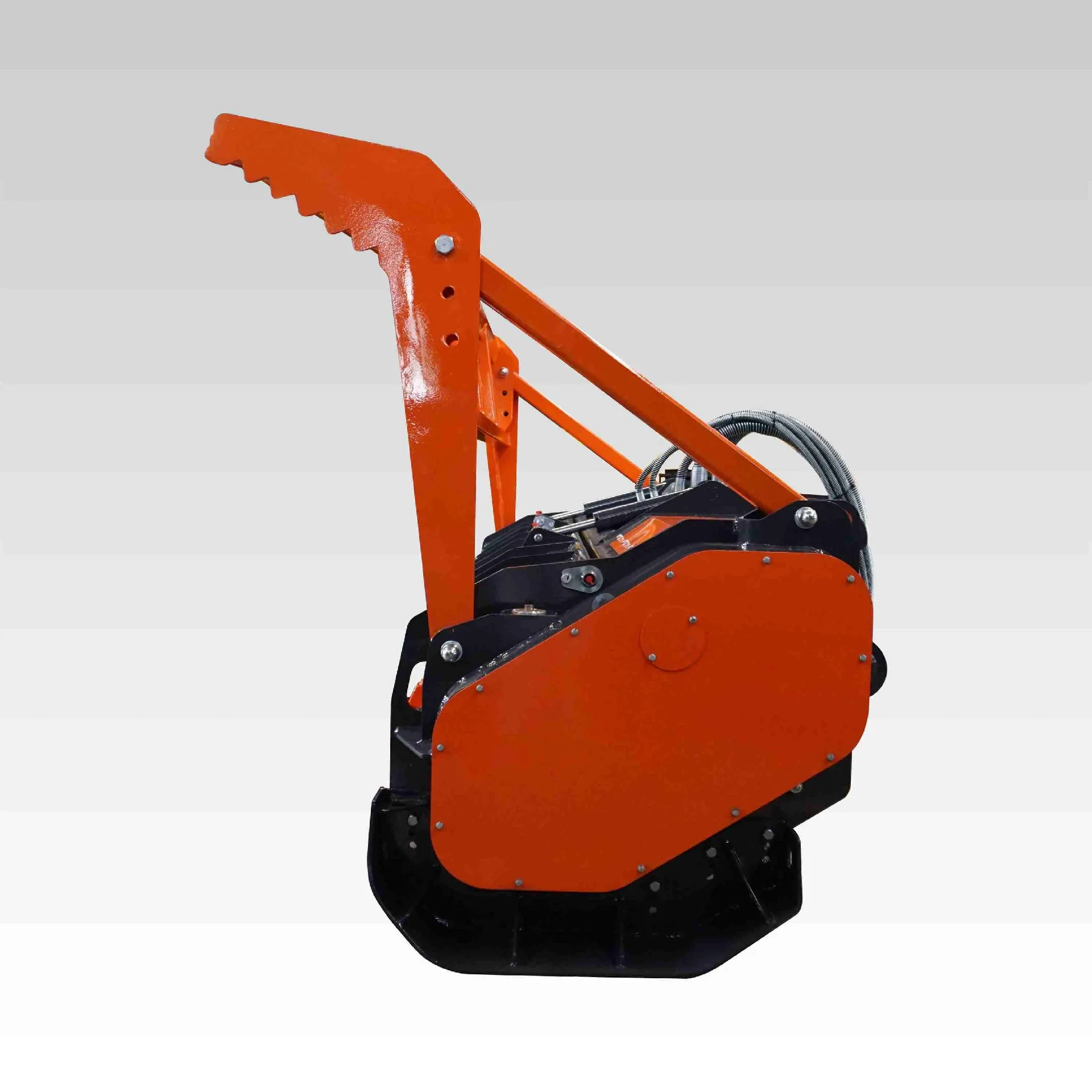

0513 Series Forestry Mulcher — factory-direct from HCN
OEM / private label available for Forestry and Garden Attachments
Fitment confirmed from machine model data
Quote reply usually within 1 business day

Contact Export Team

Share machine brand/model, hydraulic flow, quantity and destination country for an accurate quotation.

CategoryForestry and Garden Attachments
Supportnancy@hcn-tech.com

01 — Product

Product Overview

The HCN 60” skid steer forestry drum mulcher is designed to work for high flow skid steers to turn brushes and trees into a fine mulch for quick decomposition. Turn trees and underbrush from unsightly overgrowth to mulch,Punch into large-diameter trees and bring the uppermost limbs quickly to the ground

Featuring an independent cooling system with a radiator, forty tough alloy mulching teeth, an axial piston motor, and synchronous belt drive this heavy-duty drum mulcher gets even the toughest jobs done with ease. The triple helix teeth layout maximizes cutting efficiency and the sealed transmission chamber ensures nothing slows down mulching. The forward spinning motion makes quick work of trees and brushes.

Category Forestry and Garden Attachments

All Products | Request A Quote | Engineering Guides

02 — Engineering

Key Features

0513 Series Forestry MulcherFactory-engineered Forestry and Garden Attachments attachment from HCN — confirm fitment with your machine data before ordering.
Backhoe end-attachment interfaceMounts to the backhoe dipper arm and coupler.
Heavy-duty steel constructionBuilt for demanding job sites and long service life.
Replaceable wear componentsPractical maintenance for dealers and fleet operators.
Optimized hydraulic performanceDesigned for stable operation within rated flow ranges.

03 — Fitment

Compatible Machines

Confirm machine brand, model, operating weight, and hydraulic flow before ordering. Our team can verify fitment for your market.

Machine Type	Common Brands	Fitment Notes
Backhoe Loader	JCB, CAT, Case	Backhoe end attachment interface to be confirmed

04 — Jobsite

Applications

05 — Data

Specifications

Features:

· Triple helix claw teeth layout for hardwood, stumps, and branches

· Heat-treated, bolt-on forged alloy teeth

· Hydraulic axial piston motor and synchronous belt drive system

· Pressure gauge, radiator, and independent cooling system

· Oil bath lubrication bearing system

· Sealed transmission chamber to protect belts, pulleys, and key components

· Rear chain safeguard

· Hydraulic hoses and ½” flat-faced couplers

· Manually adjustable push bar

Specifications:

· Product dimension: 35” x 73” x 66” (L x W x H)

· Product height: 66” (w/push bar), 43” (w/o push bar)

· Minimum loader power required: 75HP

· Cut width: 60”

· Cut capacity: 8″ diameter

· Rotor diameter: 12'' (w/o teeth), 24''(w/teeth)

· Flow range: 24-32 GPM

· Maximum pressure: 3045 psi

· Cut depth: 4.0”

· Mulching teeth: 40

Packaging:

· Dimension: 80” x 50” x 59” (L x W x H)

· Shipping weight: 2400 lb

Specifications:


Model	051340I	051360	051372	051384
Overall Length (mm)	950	900	900	900
Overall Width (mm)	1350	1860	2160	2410
Overall Height (mm)	1050	1680	1680	1680
Transport height (mm)	1050	1080	1080	1080
Operation Width (mm)	1000	1550	1850	2100
Weight（kg）	700	985	1125	1235
WorkFlow（L/Min）	110-140	110-140	120-150	120-150
Operating Pressure (Mpa)	21	21	21	21
Host machine lifting capacity requirements (T)	>1	>1	>1.1	>1.2
Depth of rotating plough (mm)	≤100	≤100	≤100	≤100
Number of blades(PCS)	25	40	48	56
Radiator Voltage（V）(optional)	DC12/24	DC12/24	DC12/24	DC12/24
Adaptive Machine	85HP and above	85HP and above	100HP and above	100HP and above
EXW Price
HS CODE		8431499900
Package		230012001340

06 — Programs

OEM & Custom Options

HCN supports dealer, distributor, and private-label programs with configurable mounting, hydraulics, finish, and packaging.

Dimensions & capacity Custom width, working depth, capacity, and duty configuration for your market.
Mounting interface Quick-attach plates, coupler geometry, and pin dimensions matched to machine data.
Hydraulic setup Standard-flow / high-flow options and circuit layout confirmed before production.
Private label Color, logo, nameplate, and export packaging for OEM and distributor brands.
After-sales kits Wear parts and spare kits for dealer stock and field service support.
Export packing Steel frame or crate packing prepared for container loading and destination handling.

Share annual volume, destination country, and branding requirements for a manufacturing proposal.

20+Years manufacturing attachments
400+Attachment models in portfolio
21,000㎡Modern production facility
CE / ISOQuality systems for export markets

07 — Buying

FAQ

What machines is 0513 Series Forestry Mulcher compatible with?

Send machine brand, exact model, operating weight, and hydraulic flow/pressure for 0513 Series Forestry Mulcher. We confirm the mounting interface and recommend the correct configuration before quotation.

What information do you need for an accurate quote on 0513 Series Forestry Mulcher?

Machine brand and model, quantity, destination country/port, and any OEM mounting or branding requirements. Photos or coupler drawings help when available.

What hydraulic flow does 0513 Series Forestry Mulcher require?

Requirements vary by duty cycle. Check the specification table on this page, or send your machine hydraulic data for verification before ordering.

Can 0513 Series Forestry Mulcher mounting and branding be customized?

Yes. HCN supports custom mounting plates/couplers, hydraulic options, color, logo, and export packaging for dealer and OEM programs.

How fast can I get a quotation for 0513 Series Forestry Mulcher?

Click Request A Quote, email nancy@hcn-tech.com, or call +86 185 5285 3111. Complete inquiries are usually answered within 1 business day.
