01 — Product
1. It is mainly suitable for the cutting and clearing of grassland and shrub land, as well as the renewal and transformation of uneven surface pastures.
2, using the hydraulic motor direct drive system, to provide greater power to the cutting tool.
3, the hydraulic system has the function of impact prevention, effectively protect the hydraulic motor, and prolong the service life of the motor.

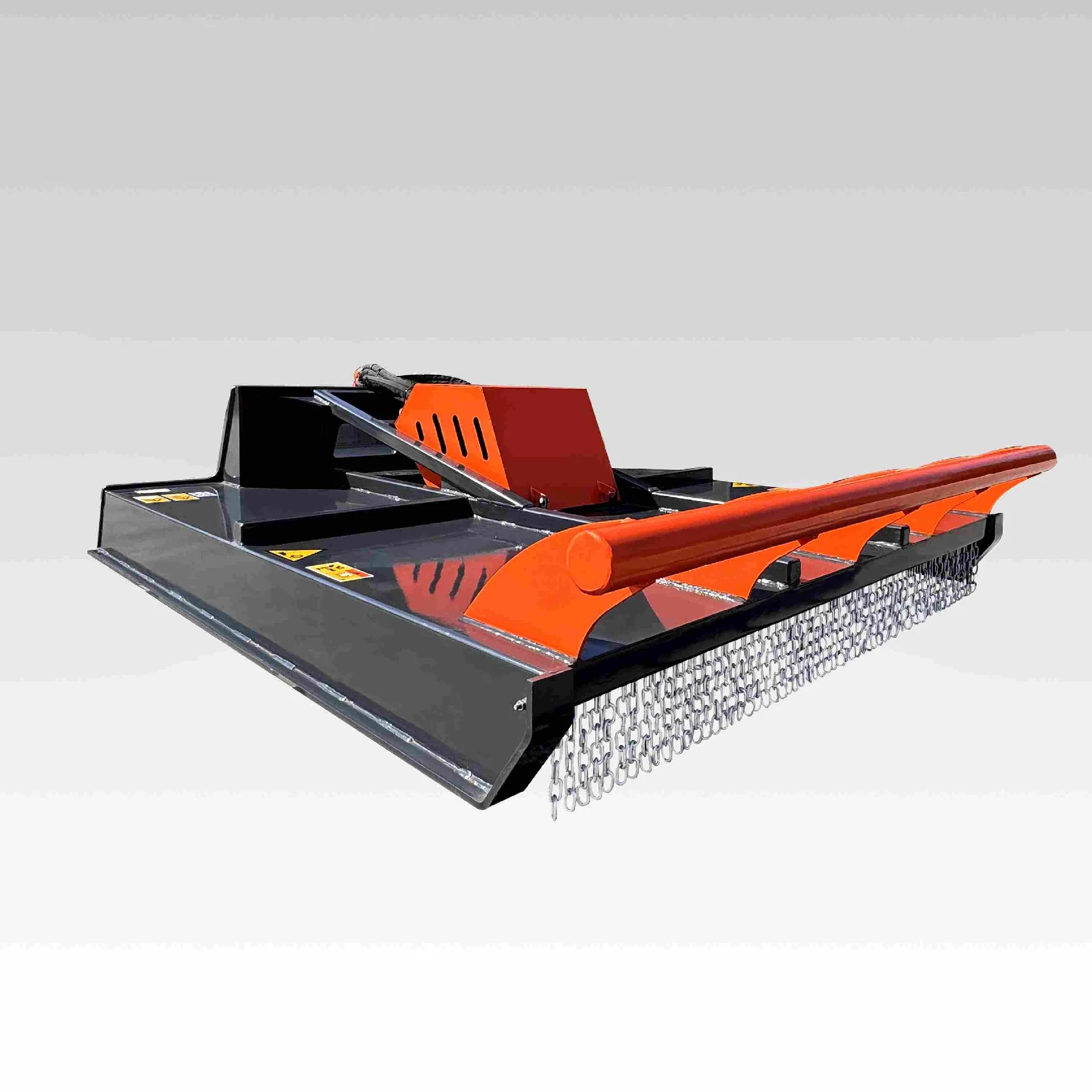

4, the front end is equipped with a protective chain and anti-collision chain, such as stone and other materials can effectively protect the safety of equipment and personnel
5, the bottom is equipped with wear-resistant sliding boots, always contact with the ground, protect the main body, excellent performance.
6. When adapting to a small loader, please install the customer (bucket, bucket) limit block according to the situation of the host.
02 — Engineering
03 — Fitment
Confirm machine brand, model, operating weight, and hydraulic flow before ordering. Our team can verify fitment for your market.
| Machine Type | Common Brands | Fitment Notes |
|---|---|---|
| Backhoe Loader | JCB, CAT, Case | Backhoe end attachment interface to be confirmed |
04 — Jobsite
05 — Data
| Specification | Value / Range |
|---|---|
| Overall Length (mm) | 1700 |
| Overall Width (mm) | 1330 |
| Overall Height (mm) | 610 |
| Weight (incl. Mount) (kg) | 350 |
| Working width (mm) | 1140 |
| Maximum Allowable Pressure (Mpa) | 21 |
| CuttingHeight (mm) | ≥50 |
| Number of blades(unit) | 2 |
| Hydraulic Flow (L/Min) | 60-80 |
06 — Programs
HCN supports dealer, distributor, and private-label programs with configurable mounting, hydraulics, finish, and packaging.
Share annual volume, destination country, and branding requirements for a manufacturing proposal.
07 — Buying
Send machine brand, exact model, operating weight, and hydraulic flow/pressure for 0508 Series Grass Mower. We confirm the mounting interface and recommend the correct configuration before quotation.
Machine brand and model, quantity, destination country/port, and any OEM mounting or branding requirements. Photos or coupler drawings help when available.
Requirements vary by duty cycle. Check the specification table on this page, or send your machine hydraulic data for verification before ordering.
Yes. HCN supports custom mounting plates/couplers, hydraulic options, color, logo, and export packaging for dealer and OEM programs.
Click Request A Quote, email nancy@hcn-tech.com, or call +86 185 5285 3111. Complete inquiries are usually answered within 1 business day.
B2B Inquiry
Share machine model, hydraulic data, quantity, and destination country. Our export team typically replies within 1 business day.
