HCN Attachments
Construction AttachmentsGrading & Leveling
Share machine brand/model, hydraulic flow, quantity and destination country for an accurate quotation.
01 — Product

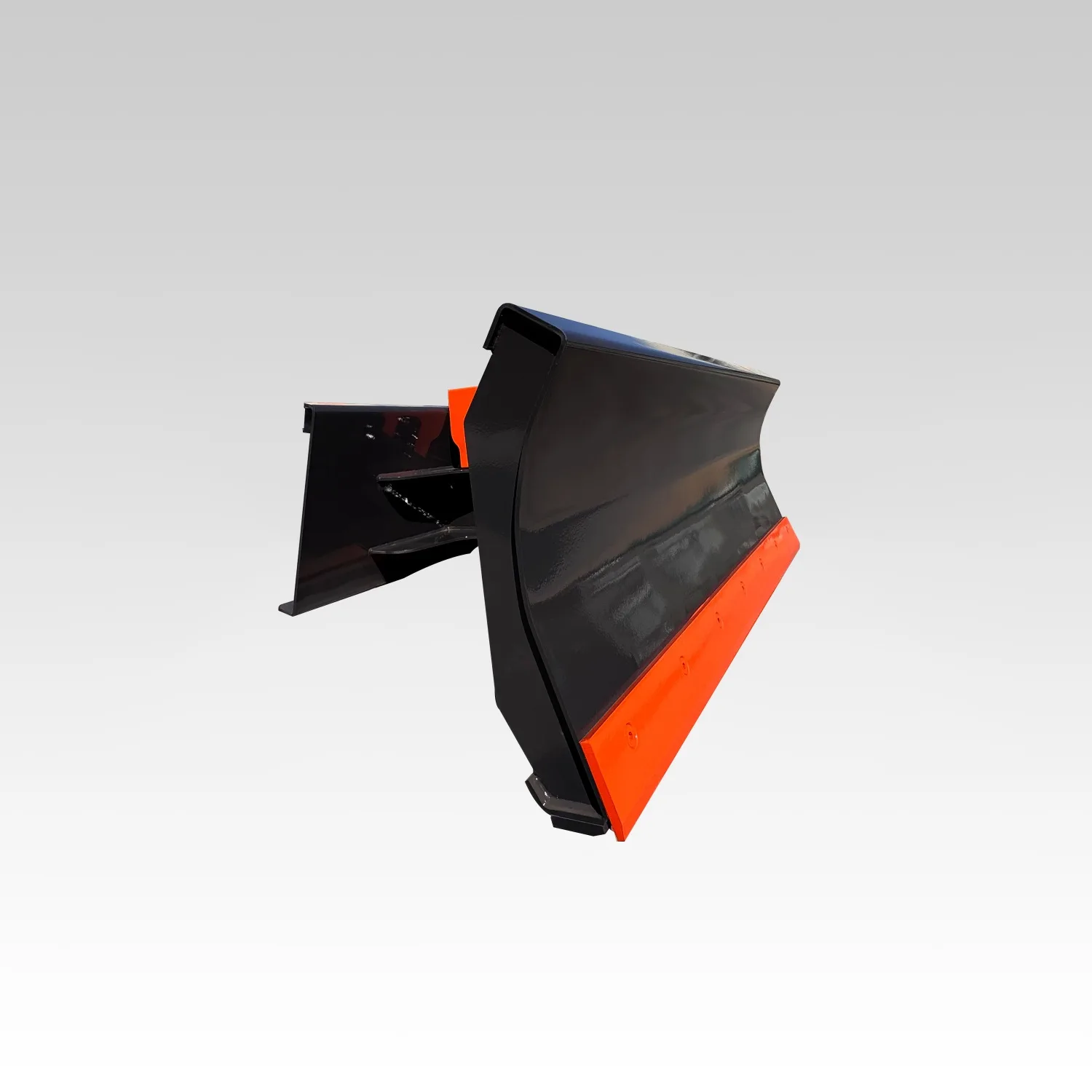

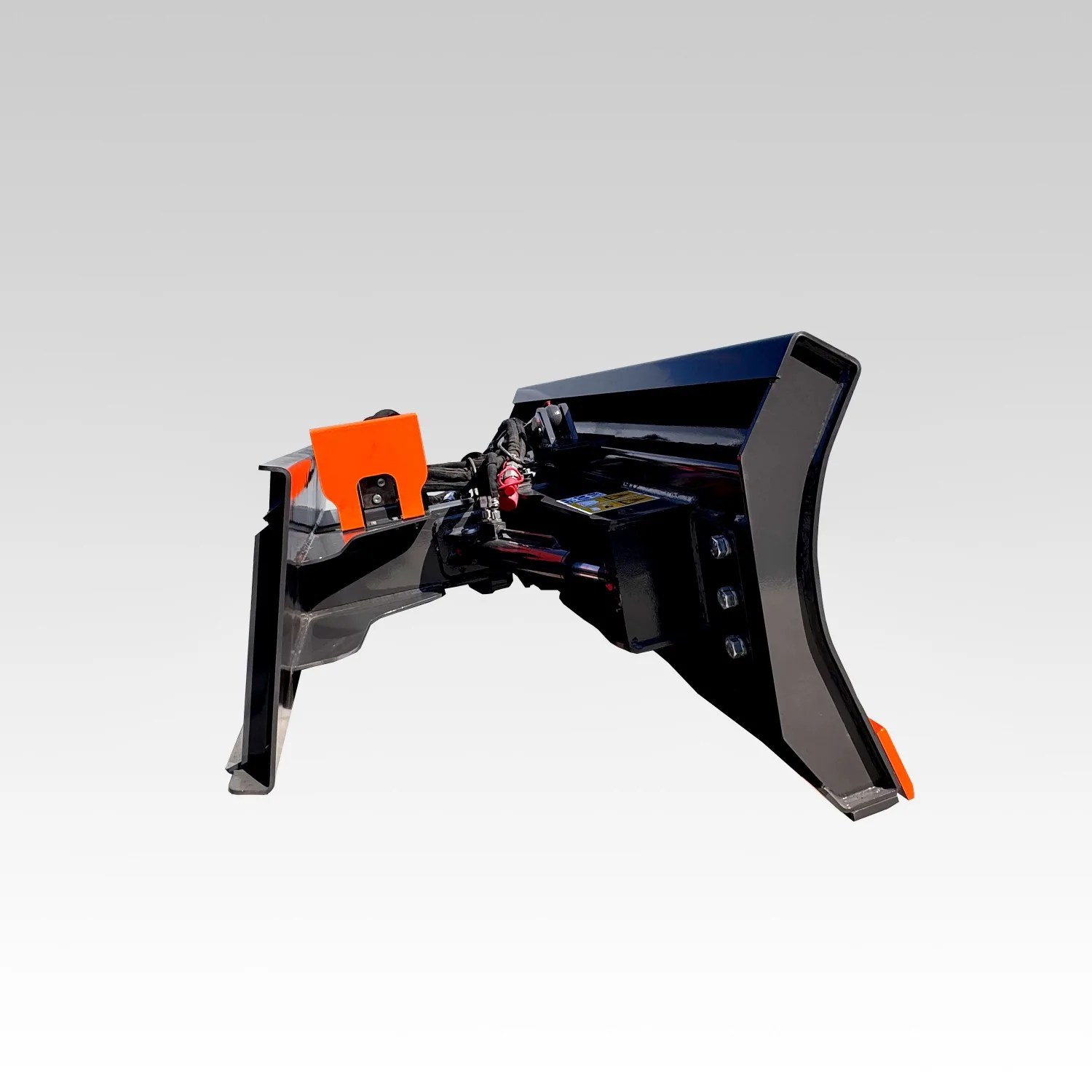

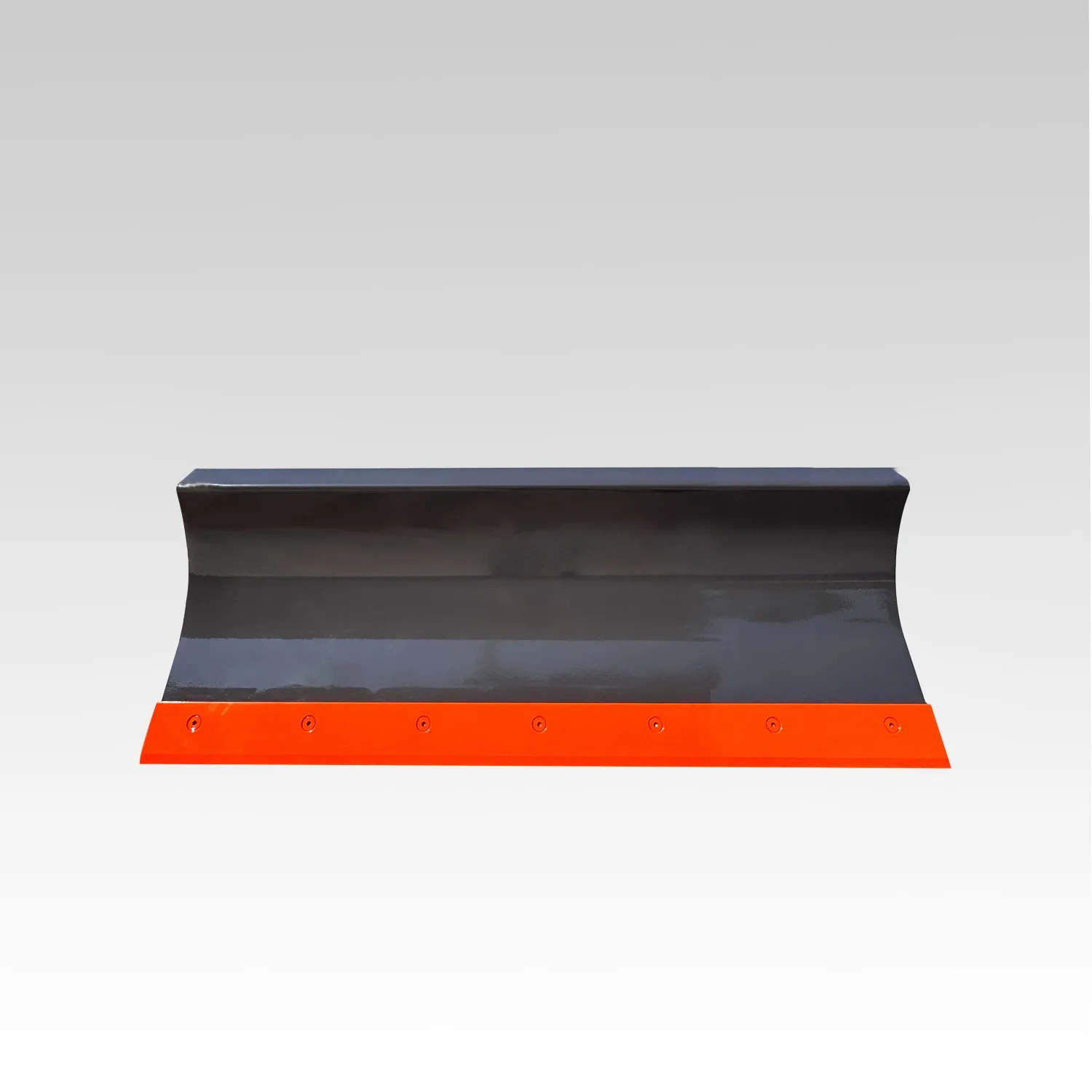

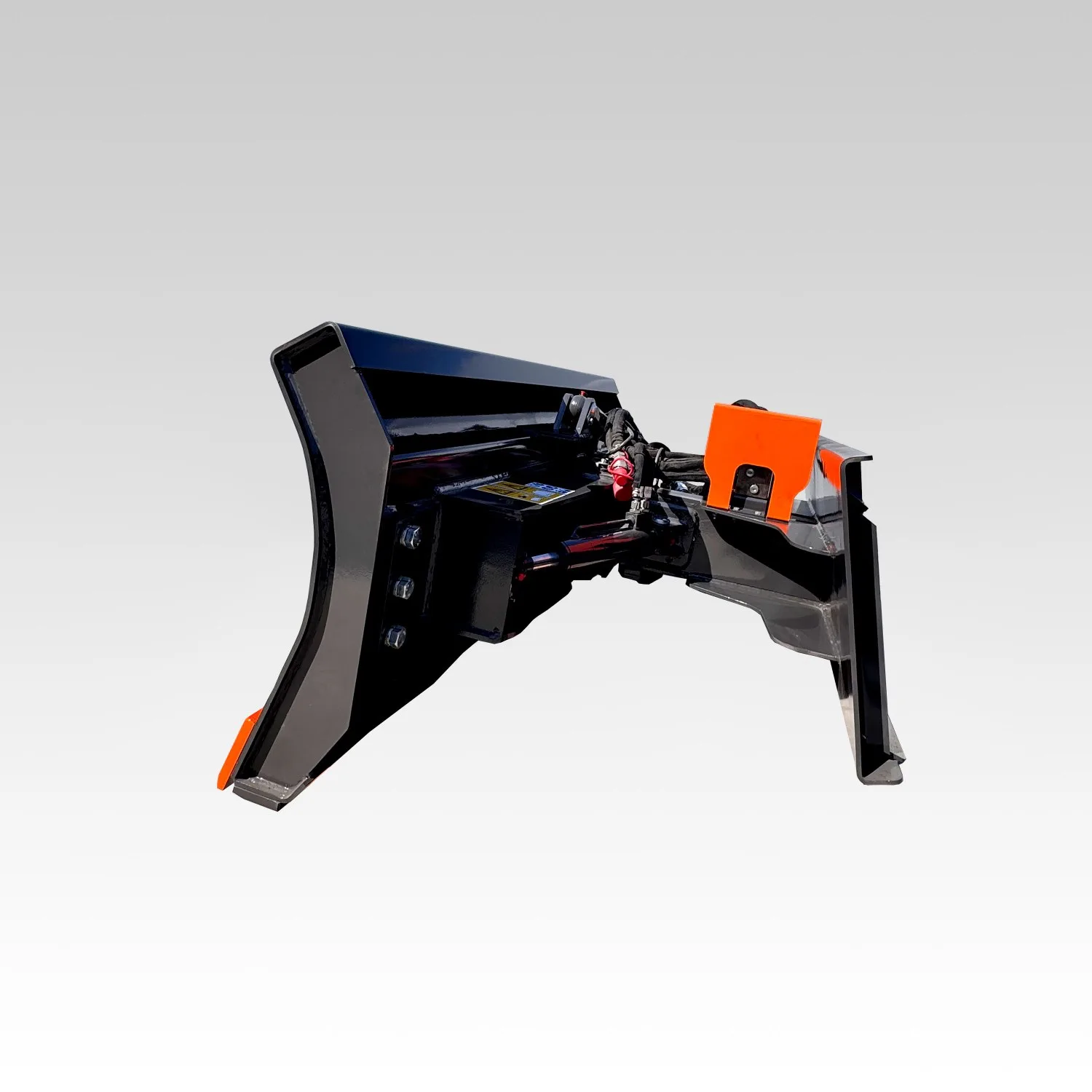

1Skid Steer Dozer Blade is one of the most common earth moving attachments, effectively turning your skid steer into a dozer machine. Dozer Blades allow you to move dirt, backfill, grade, and impose your will on the landscape with your skid steer. You'll find various styles including 4 way and 6 way angle blades in several sizes and brands below.
2.Our assortment of blades meet the high performance standards that are needed in today's competitive market. Each blade design has been tested to see that productivity and durability is the number one reason you will want purchase one of our blades.
3. The HCN Tilting Dozer Blades are available in either 72" 84" or 96" width and feature integrated tilting systems for precise grading, leveling, and trenching. With a tilt indicator visible from the operators position, you will be able to clearly see the blades position as you tilt left or right 30º off center, and up to 10º off horizontal in both directions.
02 — Engineering
03 — Fitment
Confirm machine brand, model, operating weight, and hydraulic flow before ordering. Our team can verify fitment for your market.
| Machine Type | Common Brands | Fitment Notes |
|---|
04 — Jobsite
05 — Data

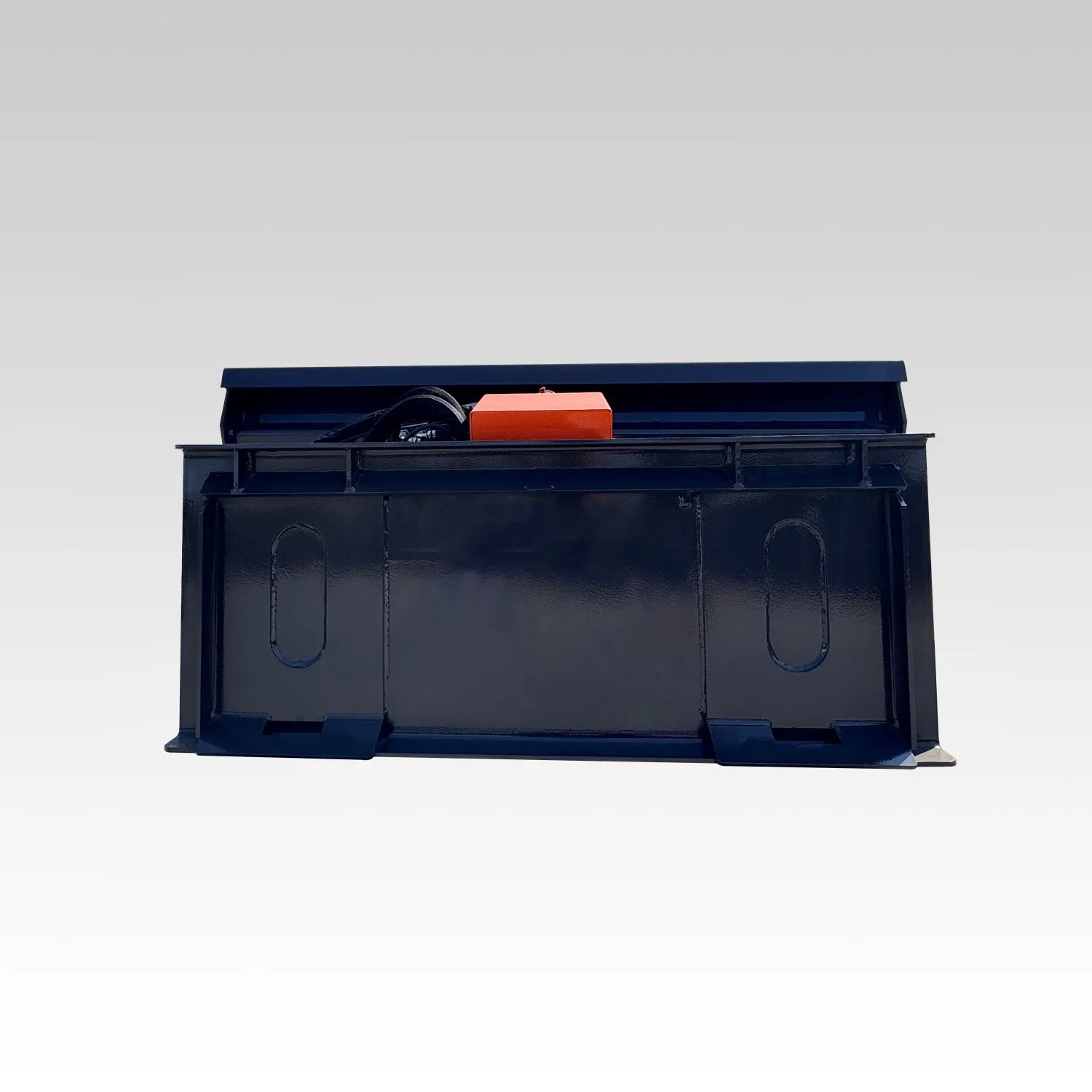

· Universal skid-steer loader quick attach mounting, or use on skid-steers up to 110 HP
· Angle and tilt cylinders are interchangeable and equipped with self aligning bushings
· Reversible ¾” x 8” bolt-on cutting edge & formed moldboard.31” thick & 28” high
· Large 3” center pivot pin with hardened steel bushings
· Full length high carbon steel, replaceable skid shoe
Model | 030960 | 030972 | 030984 | 030996 |
Overall width (mm) | 1530 | 1830 | 2130 | 2400 |
Steering 30°width (mm) | 1270 | 1519 | 1845 | 2180 |
Overall Height (mm) | 700 | 700 | 700 | 700 |
Overall Length (mm) | 965 | 965 | 965 | 965 |
Deflection angle （°） | ±30 | ±30 | ±30 | ±30 |
Maximum angle of yaw （°） | ±10 | ±10 | ±10 | ±10 |
Weight (Kg) | 525 | 556 | 575 | 625 |
Working flow（L/Min） | 20-30 | 20-30 | 20-30 | 20-30 |
Operating Voltage （V） | DC12/24 | DC12/24 | DC12/24 | DC12/24 |
Maximum pressure allowed (MPa) | 21 | 21 | 21 | 21 |
Package Size (m3) | 1680*1100*900 | 1980*1100*900 | 2280*1100*900 | 2550*1100*900 |
Pack weight | 38KG | 40kg | 42KG | 45KG |
06 — Programs
HCN supports dealer, distributor, and private-label programs with configurable mounting, hydraulics, finish, and packaging.
Share annual volume, destination country, and branding requirements for a manufacturing proposal.
07 — Buying
Send machine brand, exact model, operating weight, and hydraulic flow/pressure for 0309 Series Dozer Blade. We confirm the mounting interface and recommend the correct configuration before quotation.
Machine brand and model, quantity, destination country/port, and any OEM mounting or branding requirements. Photos or coupler drawings help when available.
Requirements vary by duty cycle. Check the specification table on this page, or send your machine hydraulic data for verification before ordering.
Yes. HCN supports custom mounting plates/couplers, hydraulic options, color, logo, and export packaging for dealer and OEM programs.
Click Request A Quote, email nancy@hcn-tech.com, or call +86 185 5285 3111. Complete inquiries are usually answered within 1 business day.
B2B Inquiry
Share machine model, hydraulic data, quantity, and destination country. Our export team typically replies within 1 business day.
