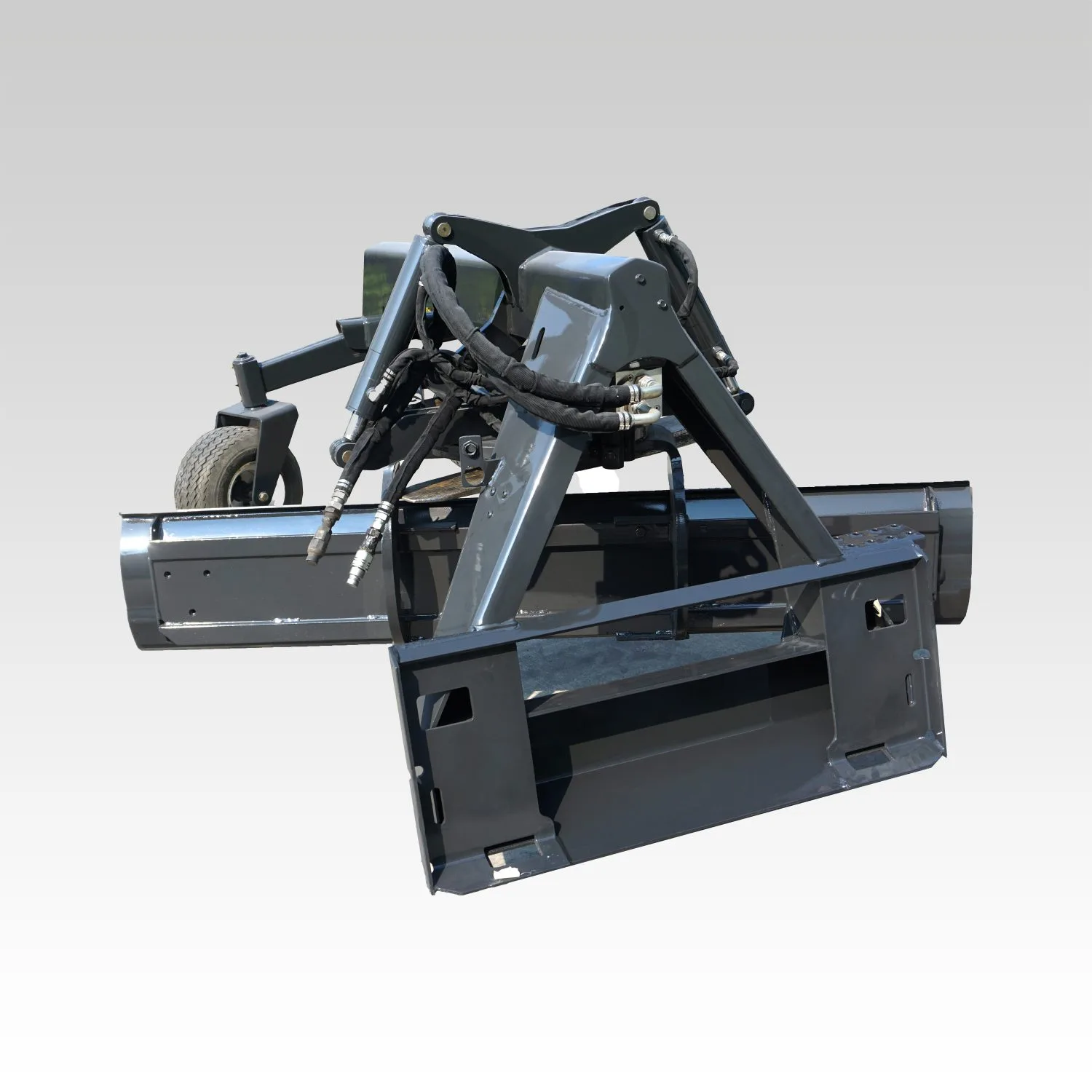

0313 Grader Technical Parameters Sheet

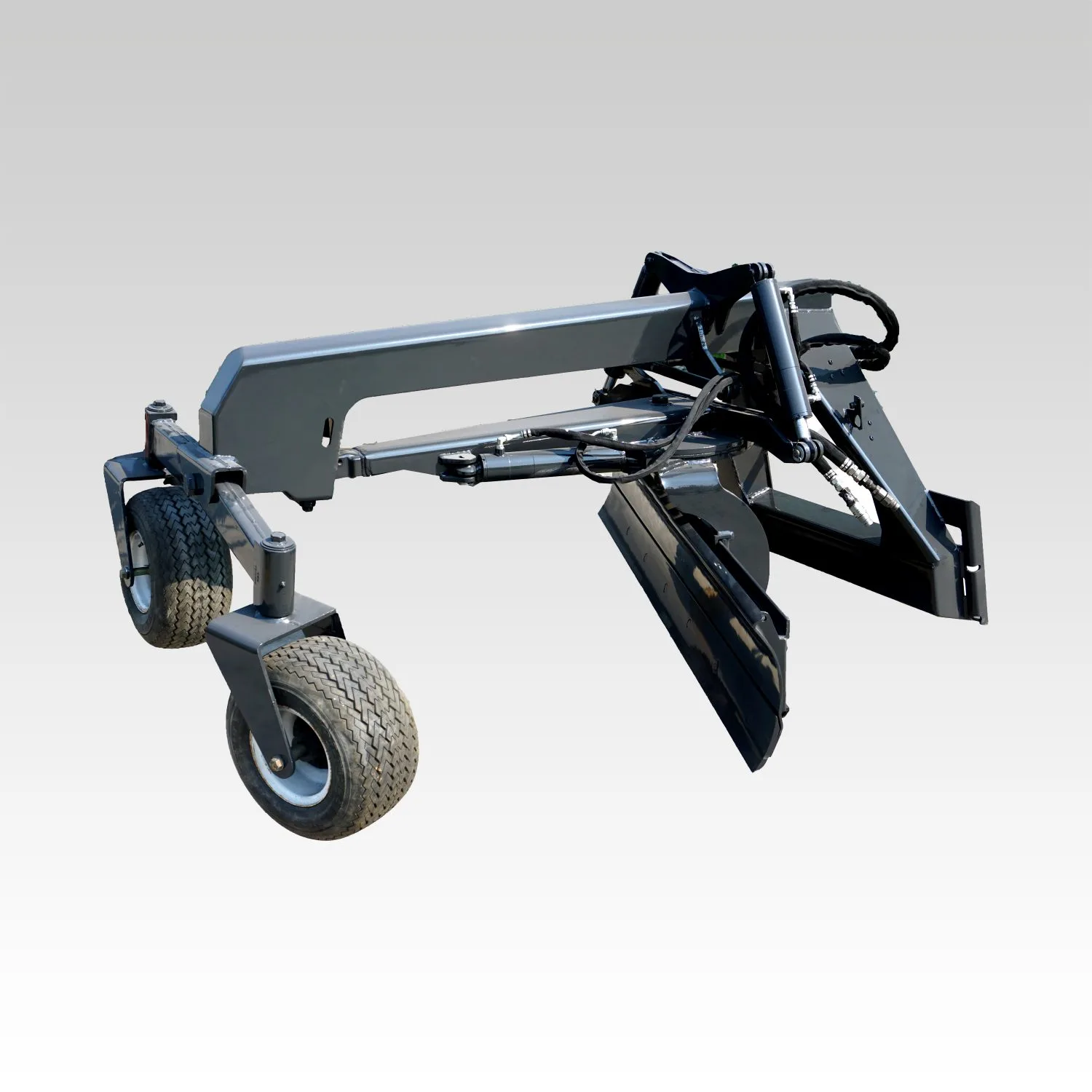

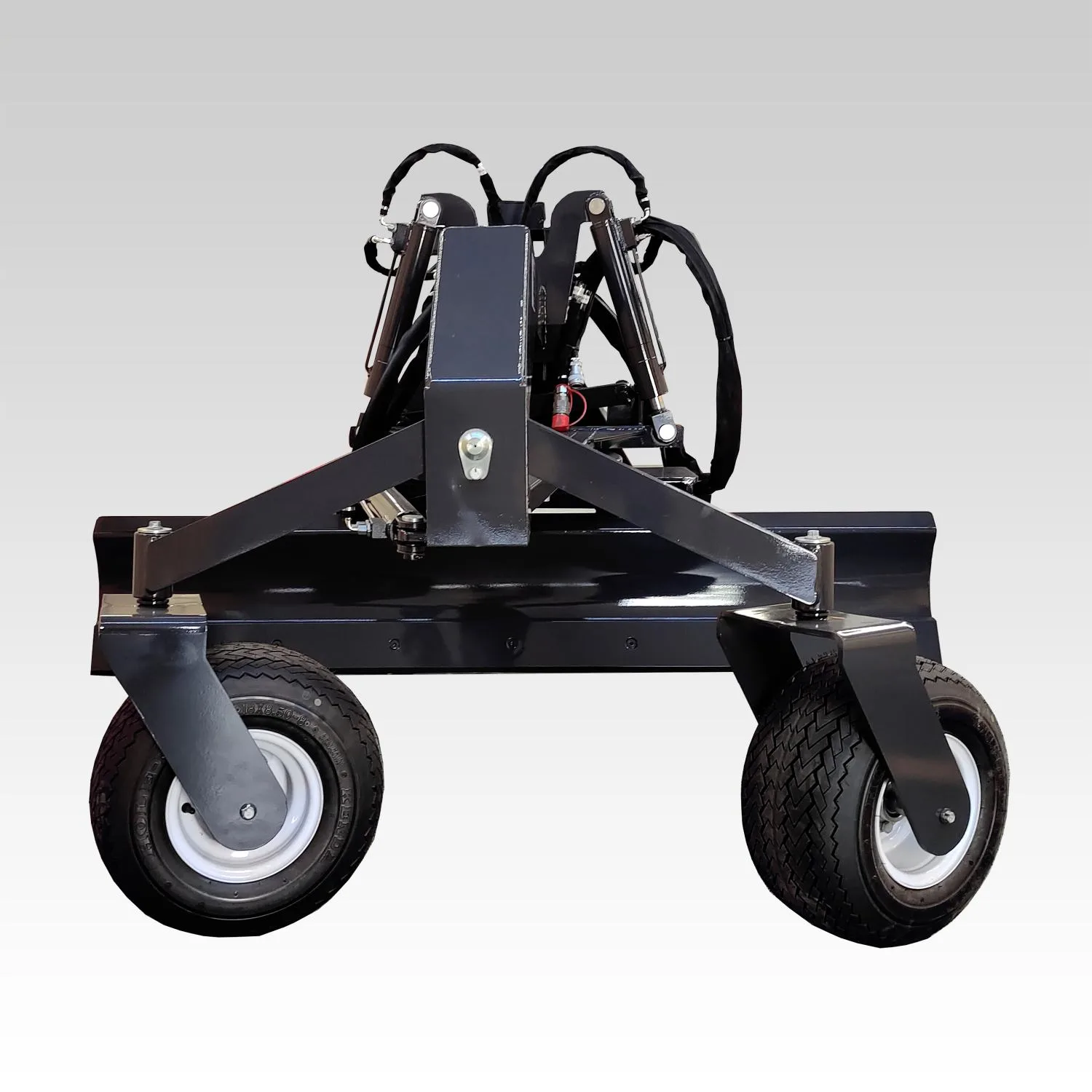

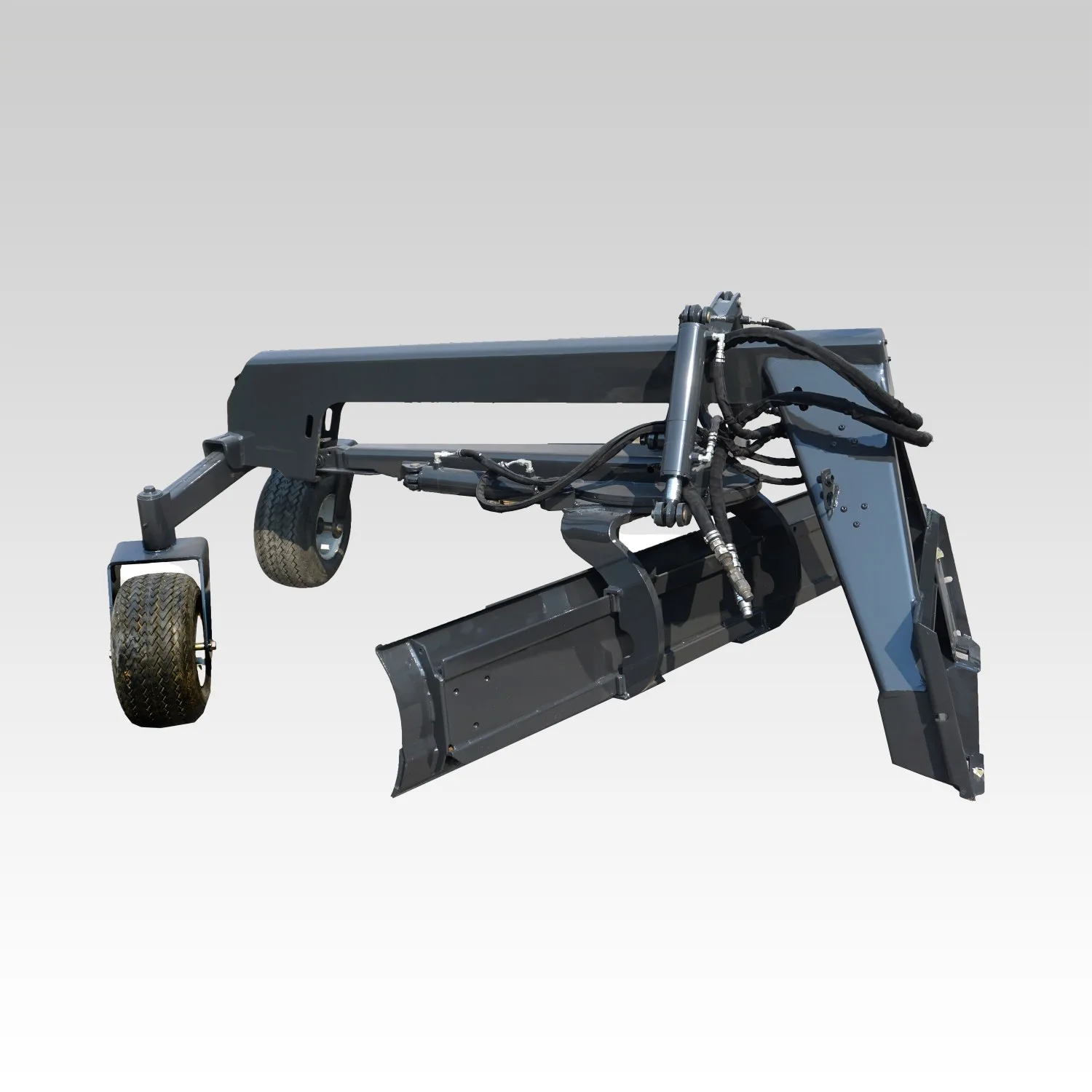

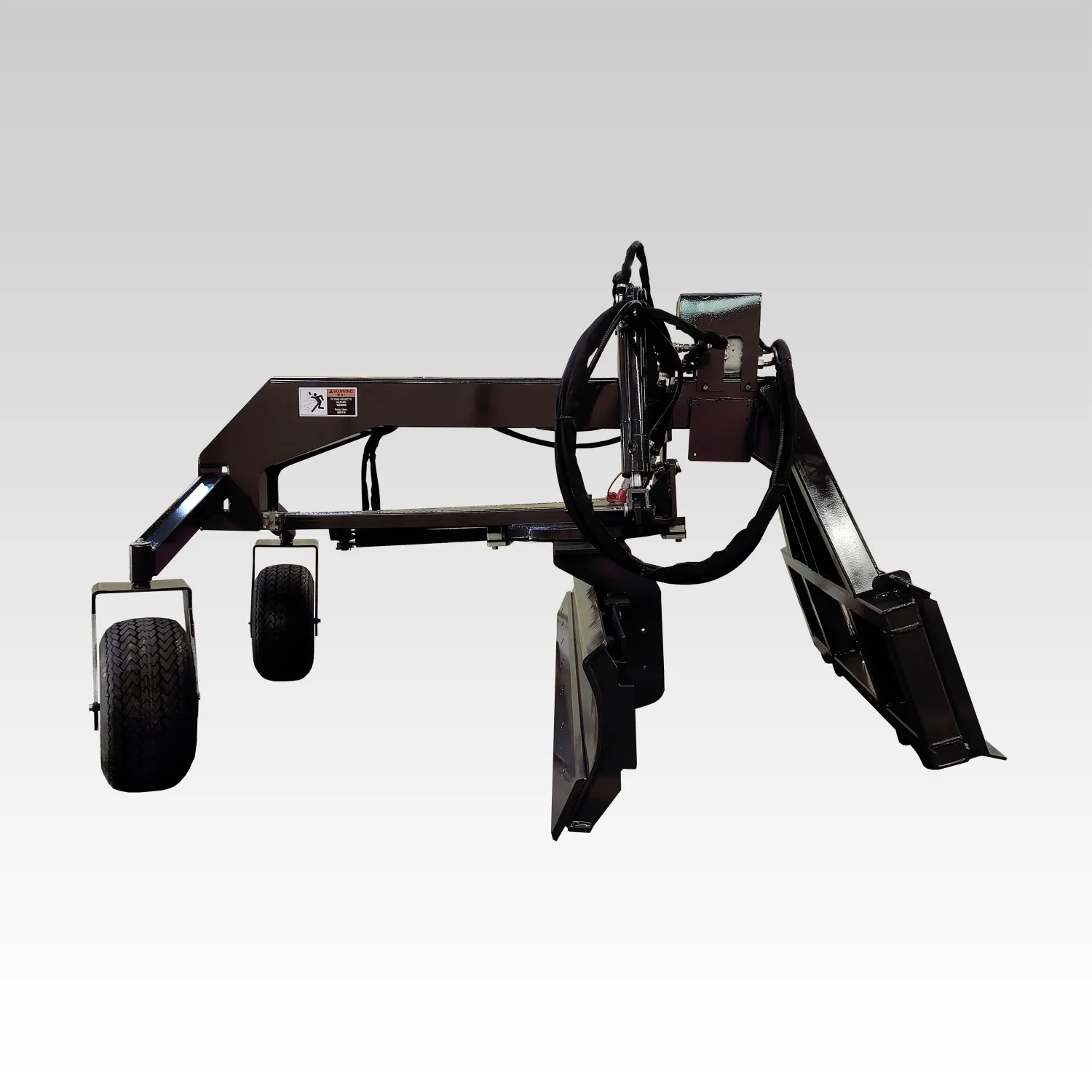

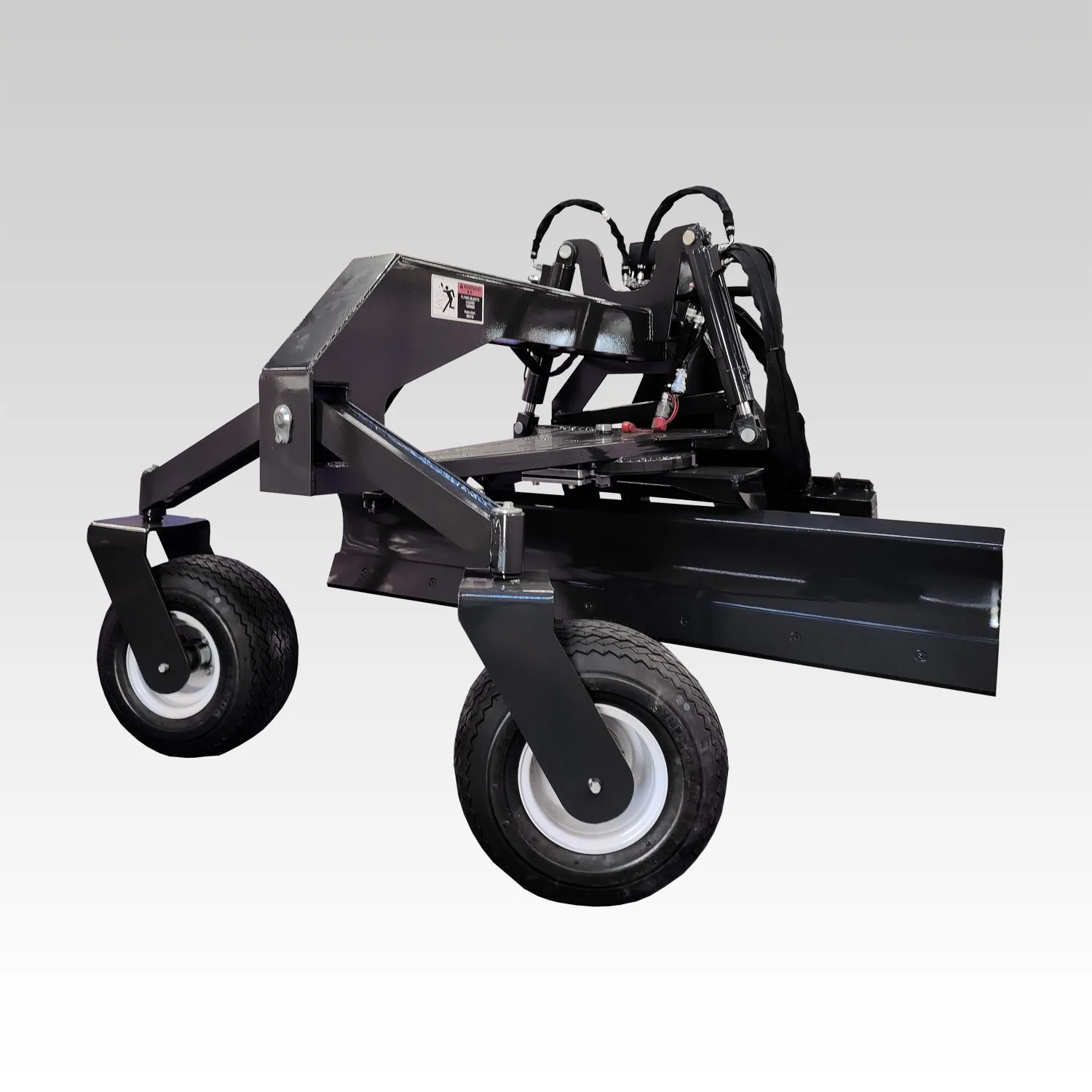

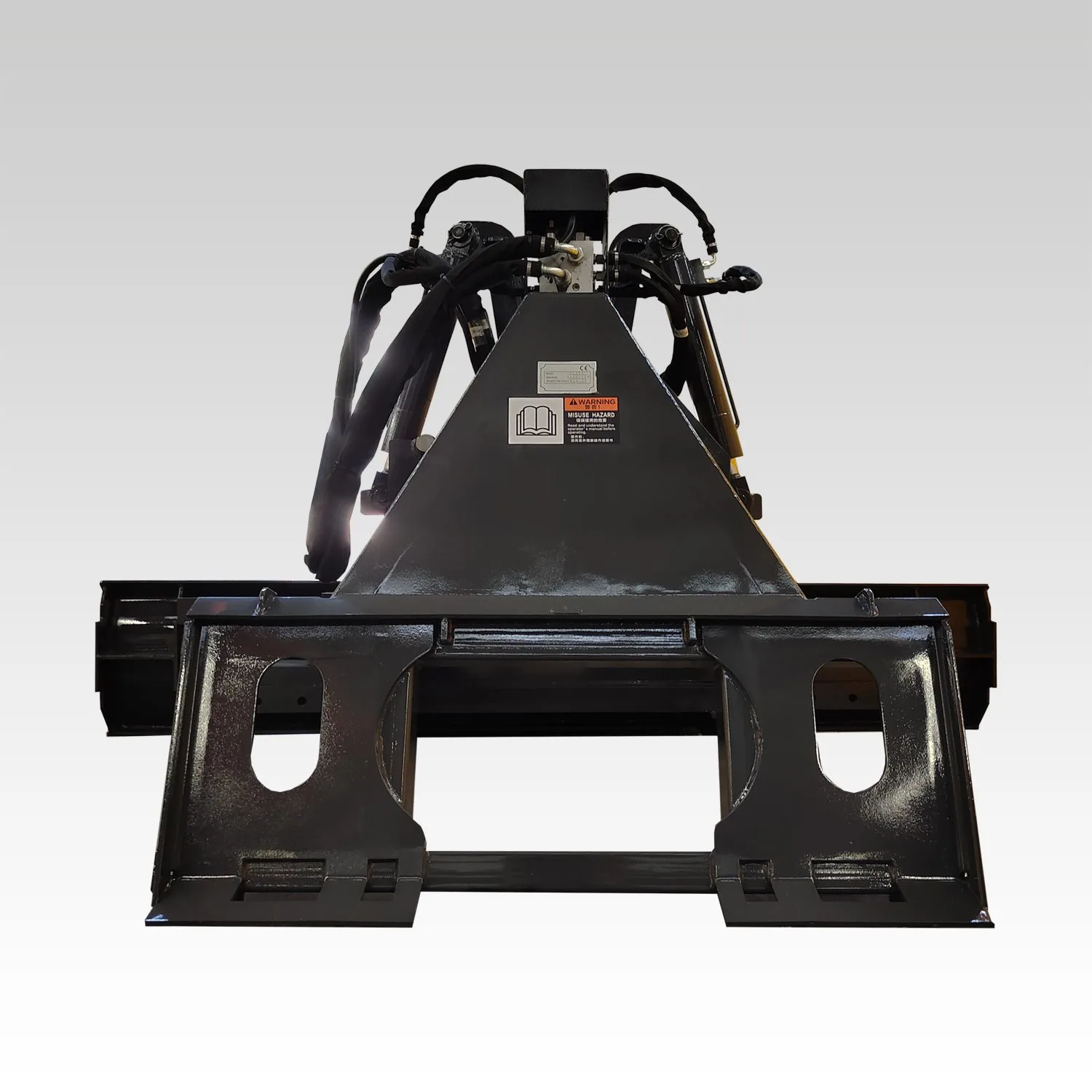

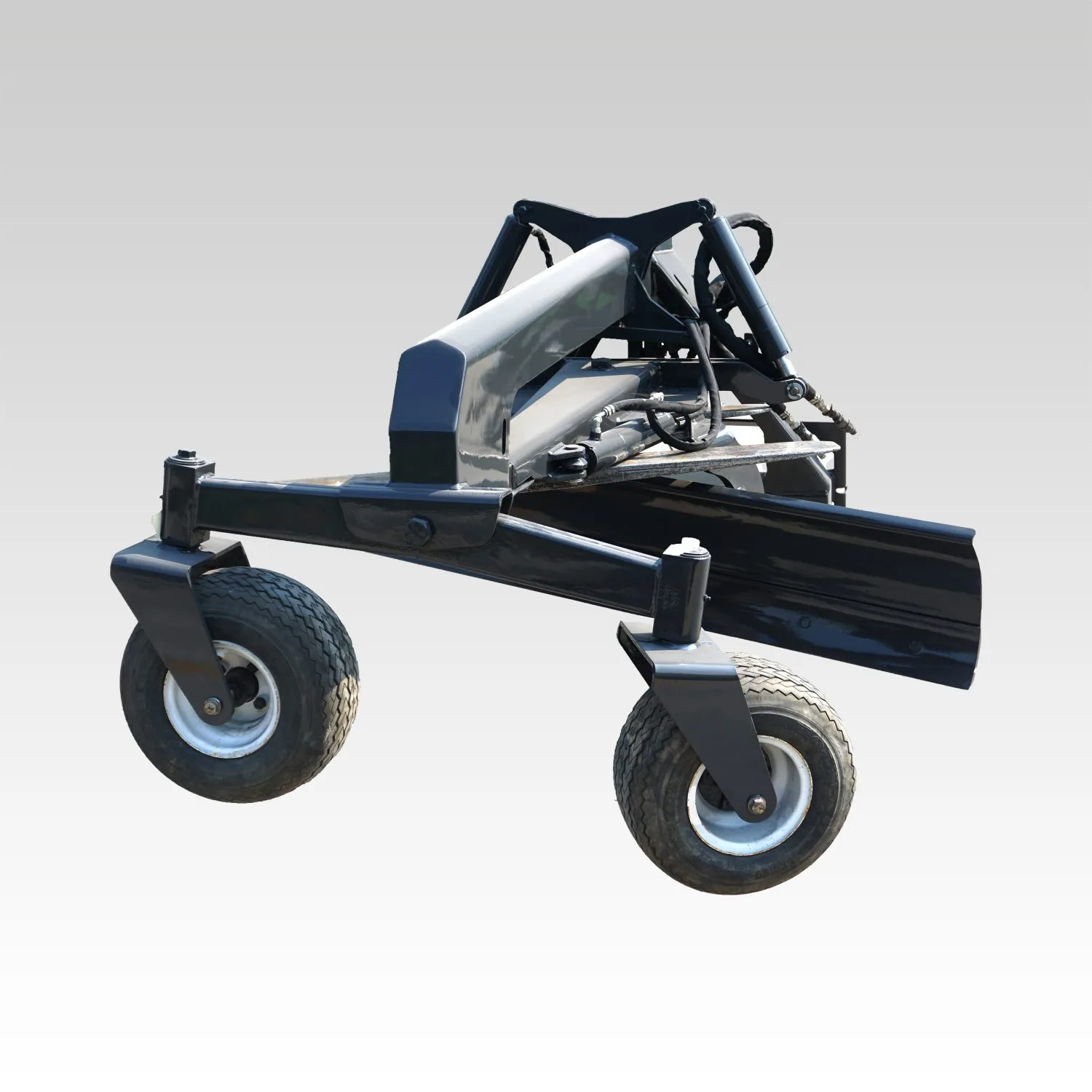

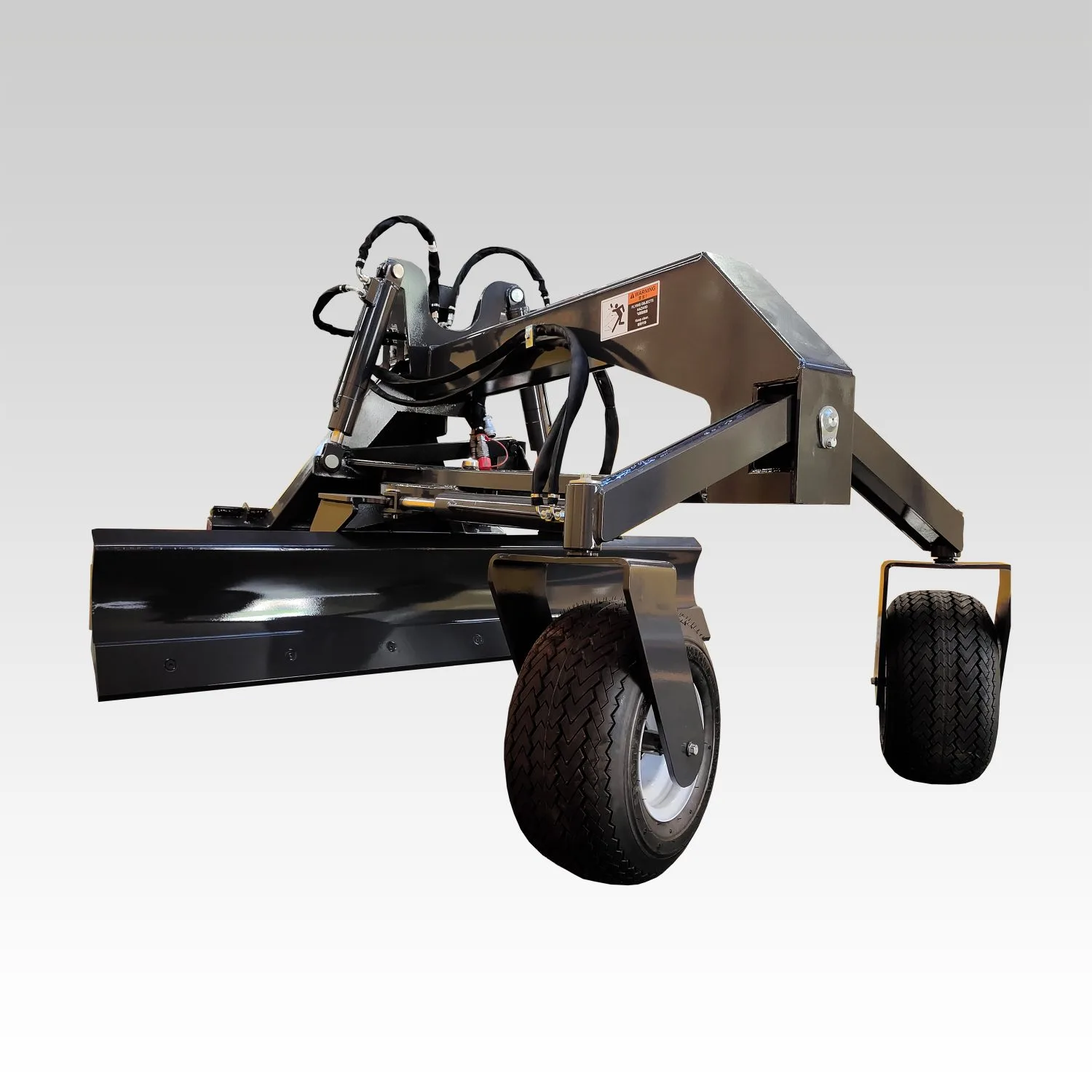

The machine can be installed on skid steer loader and small loader, the scraper is installed between the front and rear wheel axle of the machine, it can lift, tilt, rotate and extend. Flexible and accurate movements, easy to manoeuvre, levelling the site with high precision, mainly used in landscaping, asphalt, kerbs, drainage ditches and concrete walkways and path construction. 1. The overall structure of this grader is small and compact, and it is mounted on skid steer loader to realise the leveling and grading function of the road; 2. The scraper mechanism adopts a curved push plate, which can effectively push the material forward; 3. The front end adopts a floating mechanism as well as pneumatic tyres, providing excellent floating function and smoother passing through the road surface; 4. The cutting edge plate adopts mounted bolt connection, when there is wear, it can be turned over to become a new cutting edge; 5. The left and right lifting and rotating functions of the scraper mechanism are controlled by the oil cylinder, which is practical and convenient; 6. The hydraulic system adopts proportional valve, which can perfectly match the grading speed of the loader, and can gradually adjust the lift and rotation of the scraper; 7. It can be matched with laser control system to improve the accuracy and productivity of the operation and perfectly realise the levelling and grading operation. 8. Optional hydraulic control side shift function can realise the quick side shift function of the blade board, saving time and improving efficiency
