01 — Product

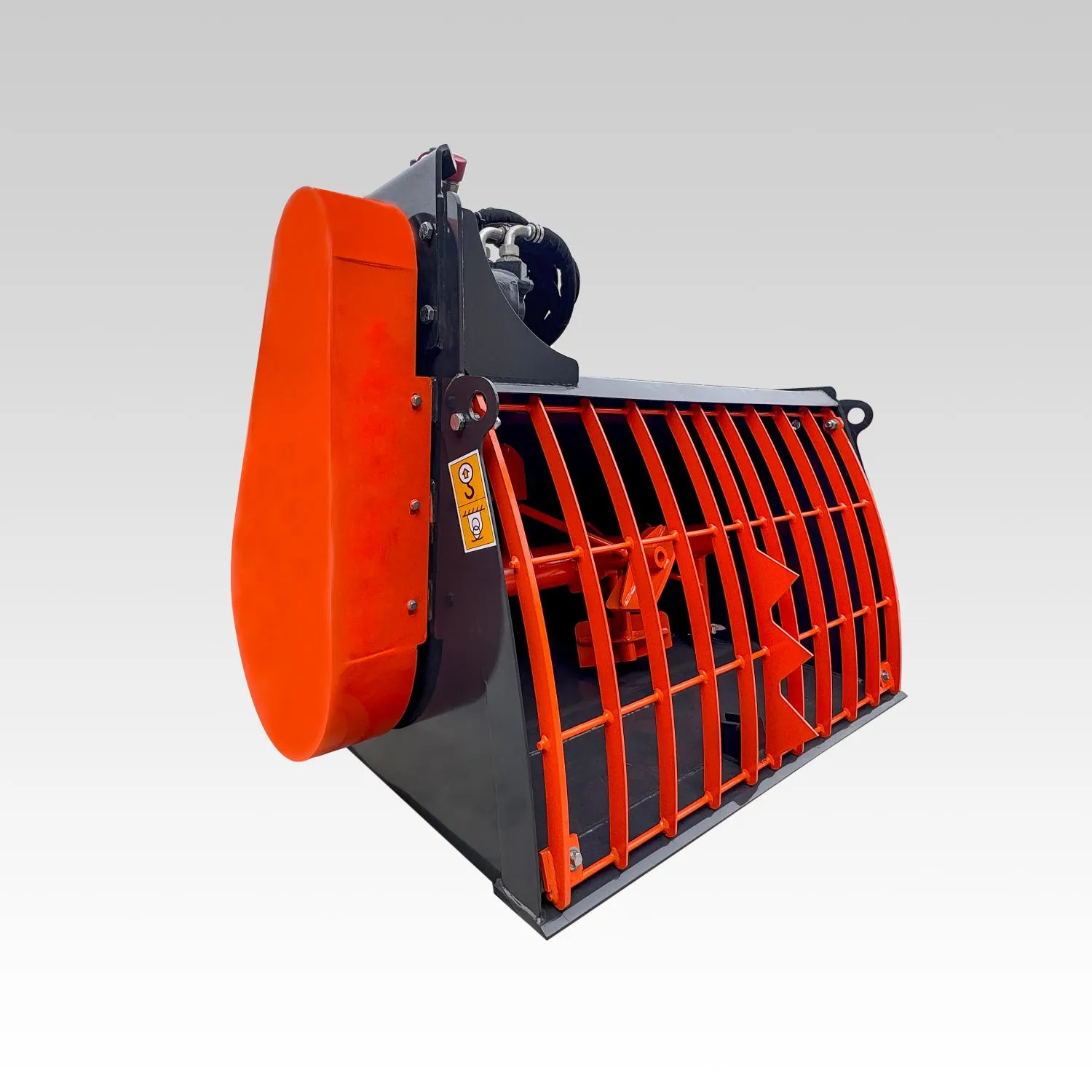

1. The concrete mixing bucket integrates the function of the mixer and the bucket, which reducesthe trouble caused by the shoveling process of yellow sand and stones, saves working time and improves work efficiency.
2. Disrupt the phenomenon of cement particle agglomeration and promote the development of the diffusion phenomenon.
3. Improve the number of movements of the mixture unit body and the cross frequency of the movement track, and accelerate the homogenization.
4, by hydraulic drive can achieve the positive and reverse of the dragon, accelerate the mixing speed of concrete.

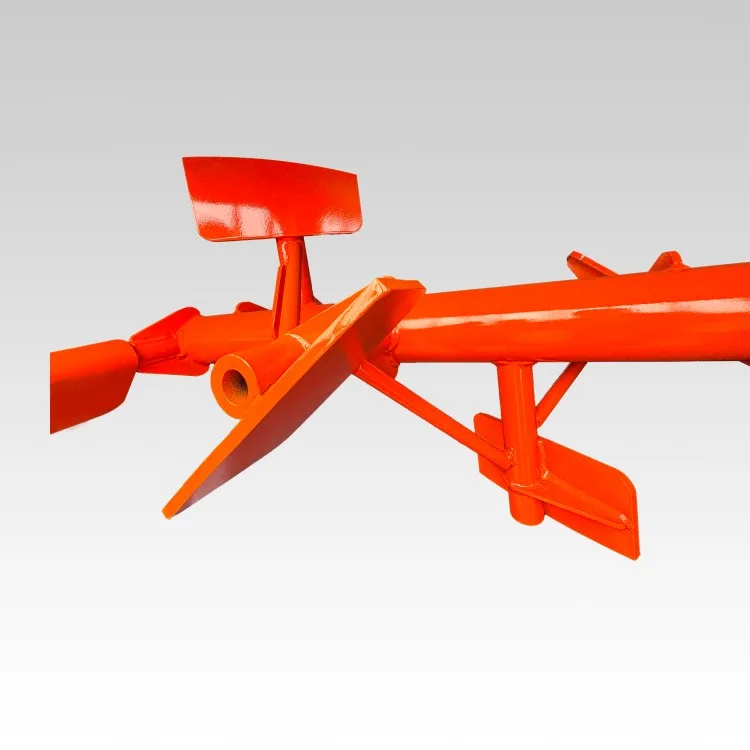

5. The paddle is designed to be a long round hole and adjustable. It can flexibly adjust the spacing between the paddle and the bottom and the side plate according to the actual use situation.

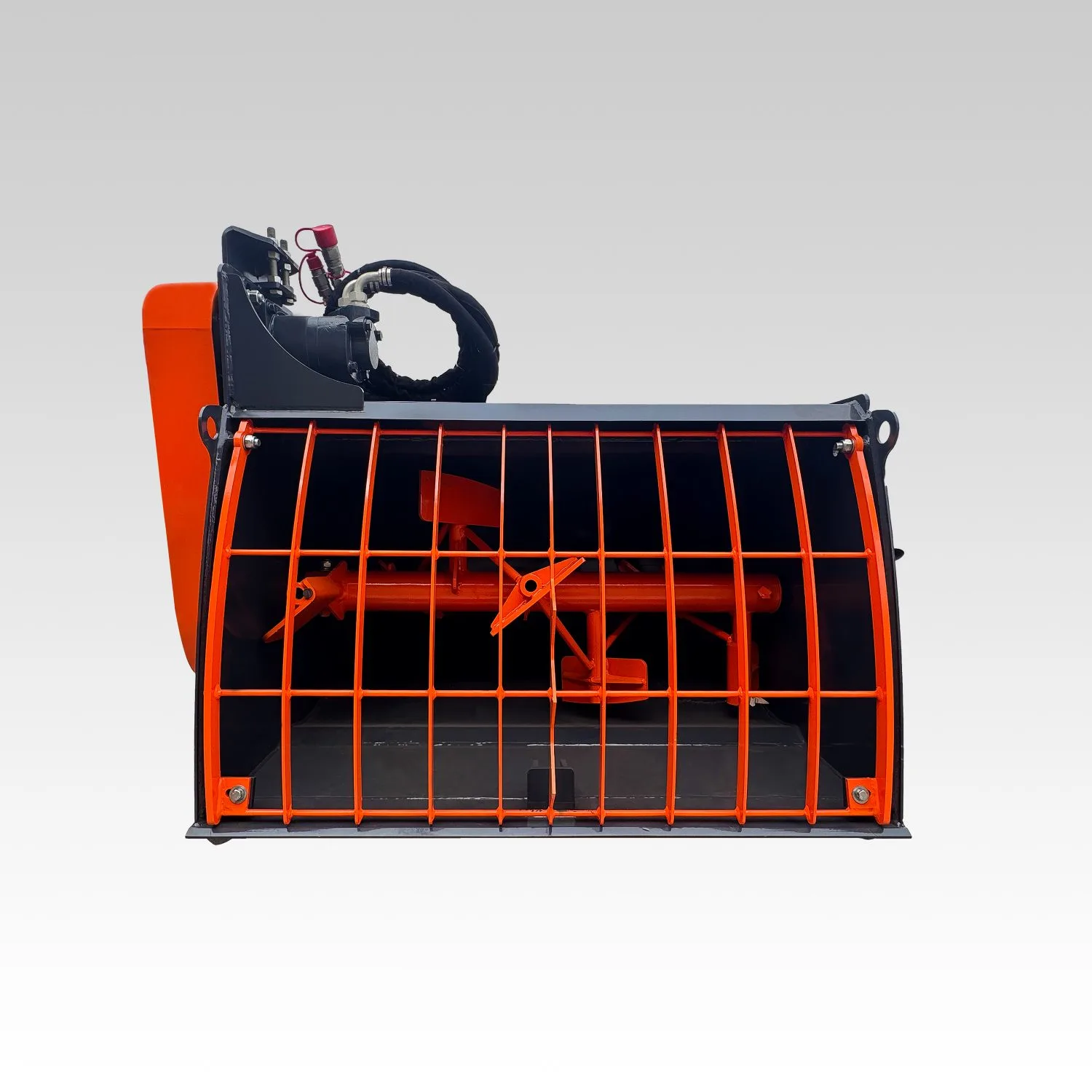

6. In order to prevent concrete splashing in the mixing process, a cover plate can be selected on the fence network.
7. When supporting different hosts, please install (bucket, bucket) limit block according to the situation of the host.
02 — Engineering
03 — Fitment
Confirm machine brand, model, operating weight, and hydraulic flow before ordering. Our team can verify fitment for your market.
| Machine Type | Common Brands | Fitment Notes |
|---|
04 — Jobsite
05 — Data
| Specification | 031004 | 0310L04 | 031006 | 0310A04 |
|---|---|---|---|---|
| Overall Length (mm) | 1170 | 1850 | 1170 | 875 |
| Overall Width (mm) | 1835 | 1340 | 2135 | 1500 |
| Overall Height (mm) | 1215 | 1235 | 1215 | 1015 |
| Output per Drum (m³) | 0.45 | 0.45 | 0.45 | 0.45 |
| Flow Rate (l/min) | 60-110 | 60-110 | 60-110 | 60-110 |
| Maximum Allowable Pressure (MPa) | 21 | 21 | 21 | 21 |
| Weight (Theoretical) (incl. Mount) (kg) | 560 | 573 | 650 | 550 |
| Discharge Type | Front / side discharge | Front / side discharge | Front / side discharge | Front discharge |
| Application Carriers | Skid steer / compact loader | Skid steer / compact loader | Skid steer / compact loader | Skid steer / compact loader |
06 — Programs
HCN supports dealer, distributor, and private-label programs with configurable mounting, hydraulics, finish, and packaging.
Share annual volume, destination country, and branding requirements for a manufacturing proposal.
07 — Buying
Send machine brand, exact model, operating weight, and hydraulic flow/pressure for 0310 Concrete bucket. We confirm the mounting interface and recommend the correct configuration before quotation.
Machine brand and model, quantity, destination country/port, and any OEM mounting or branding requirements. Photos or coupler drawings help when available.
Requirements vary by duty cycle. Check the specification table on this page, or send your machine hydraulic data for verification before ordering.
Yes. HCN supports custom mounting plates/couplers, hydraulic options, color, logo, and export packaging for dealer and OEM programs.
Click Request A Quote, email nancy@hcn-tech.com, or call +86 185 5285 3111. Complete inquiries are usually answered within 1 business day.
