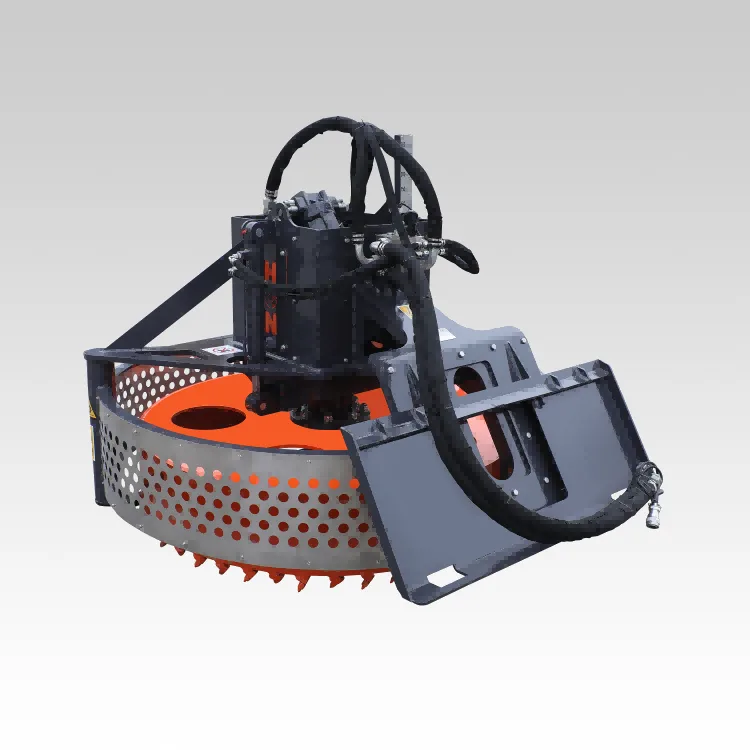

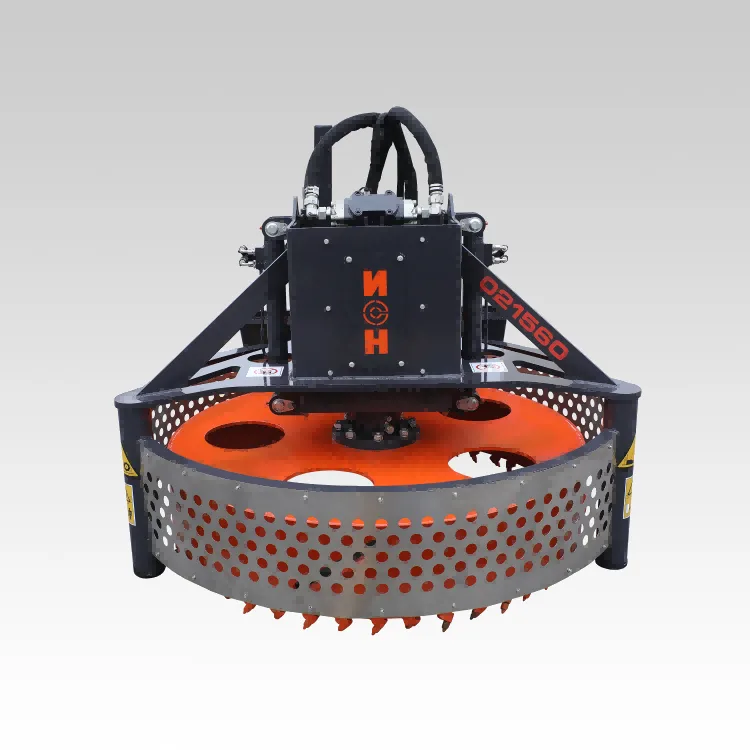

021560 Manhole Saw

Manhole replacement can be messy and dangerous work. It typically requires several jackhammers and a lot of time. The 021560 Series II from HCN attachments changes that.

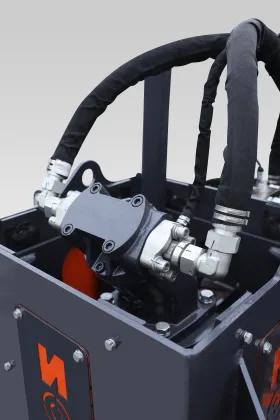

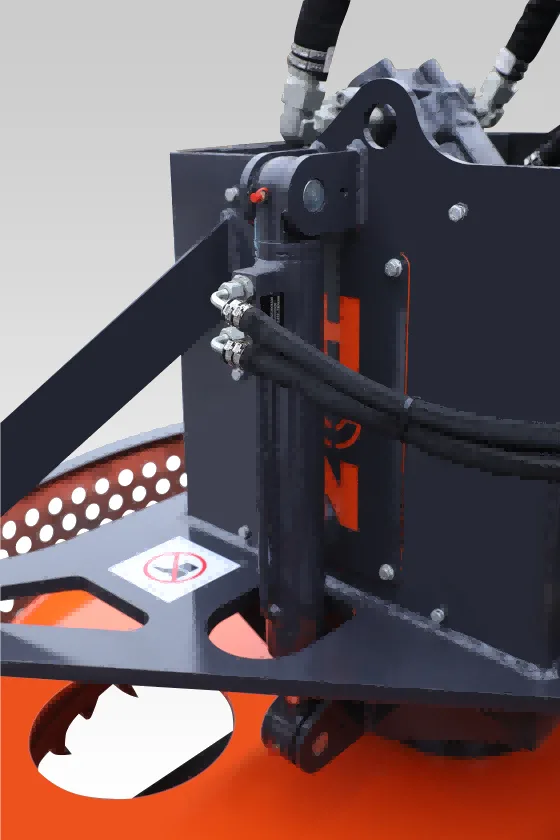

The 021560 has heavy-duty hydraulic motors, and a hydraulic-powered breakout feature, meaning the skid-steer’s loader arms are positioned safely down during breakout. Its 45 carbide-tipped picks cut through concrete, asphalt and brick. A self-aligning hydraulic clamp securely attaches to the collar, ensuring the saw is centered and secure. Cutting is accomplished using hydraulics to apply down pressure to the cutting drum, rather than using the weight of the skid-steer.

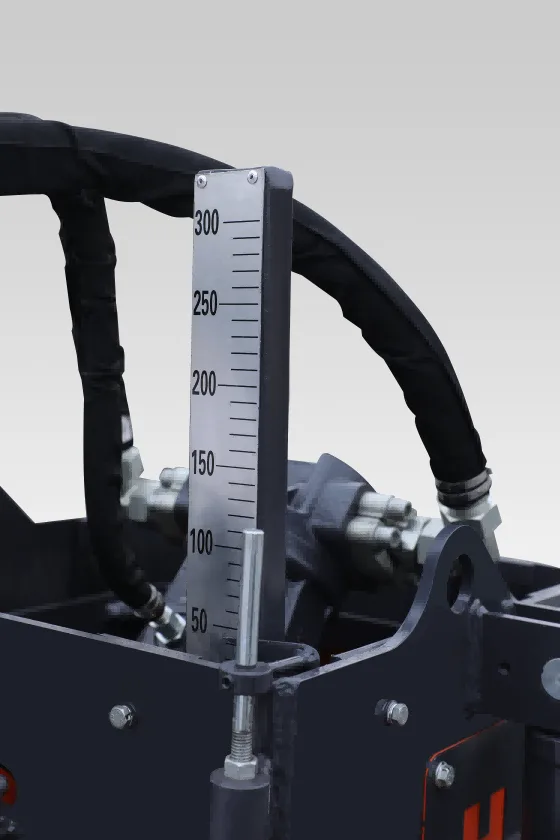

“This unit keeps all the cutting down low to the pavement, eliminating the mess and safety issues from flying debris,” says Runner. “There’s a depth indicator that lets the operator know how deep the cut is without ever having to leave the cab of the skid-steer.”

A 54-inch-diameter hole cut is standard, with optional sizes available. The unit lifts the collar and surrounding layers of concrete and asphalt when the cut is finished, and the material is set onto a truck bed for disposal. The collar can easily be broken free for reuse. “It actually pulls the core out, so you don’t need a bucket or cherry picker,” says Runner.

Runner also points out that the circular cut versus the more traditional square cut prevents the common stress fractures that can develop on the sides and corners of square cuts. The rounded surface provides for better adhesion of replacement materials. The unit requires a skid-steer with 33 gpm or higher hydraulics.

“This unit can be a huge money saver for municipalities, as it keeps them from having to subcontract out their manhole replacement jobs,” says Runner. “It’s a niche product that solves a lot of big issues for municipalities and contractors
